BlackBerry 7280 Microphone Replacement

Written By: Andrew Catlin

Comments: 1

Difficulty

Moderate

Steps

Time Required

15 minutes

Introduction

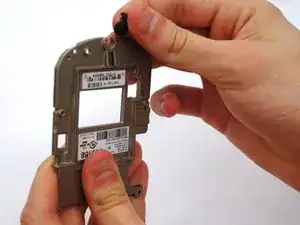

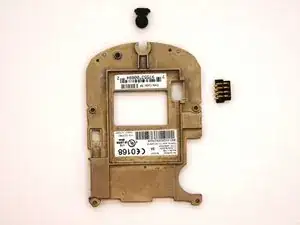

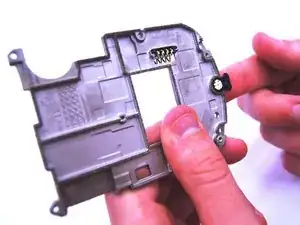

The microphone is used during the phone function of the device. This guide will demonstrate how to remove the microphone after the logic board has been removed.

Tools

Step 1

With your thumb press down on the locking- button on the back of the BlackBerry 7280.
Slide the battery cover off the device.

Step 2

Remove the lithium-ion battery from the back of the device using your index finger.

Step 3

Hold the device with both hands.
Lift the SIM card holder using your thumb and index finger.
Remove the SIM card from the device.

Step 4

Using a Torx T6 screwdriver, remove all six 1/8 inch screws (marked in red) from the back case. Set screws aside.
The SIM card has been removed here to prevent damage to the card. This is recommended, but not not required.

Step 5

Use the plastic opening tool to pry the back case away from the front case.

Step 6

Using a Torx T6 screwdriver, remove the lone 1/8 inch screw that holds the upper metal bracket onto the larger metal bracket. Set aside the screw and the bracket.
