Introduction

Demonstrate the tear-down process and the removal of a broken speaker in the Bolide Technology Group Dual Alarm Clock, so that others looking to replace the speaker have a basis to build from.

  1. FJ2ZTWc5CFPwwnSQ
    FJ2ZTWc5CFPwwnSQ
    YlRUXf3XQeWtCNYv
    ovpx2X3PWBVVNqeA

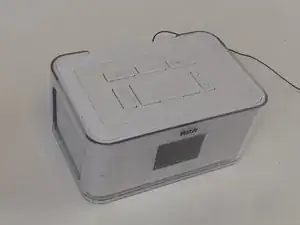

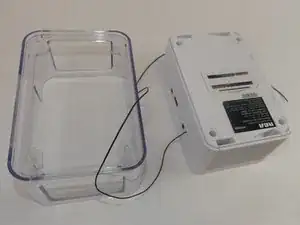

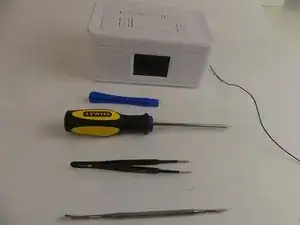

    • Slide the clear plastic case off of the speaker

  2. gG5yqkDRE1ZxJSjC
    gG5yqkDRE1ZxJSjC
    qm2ORcc1EFW4Iqho
    wNQUcHLNCxUajL3C

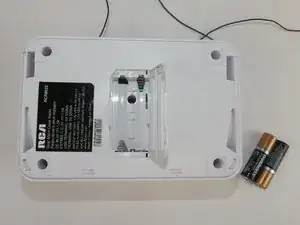

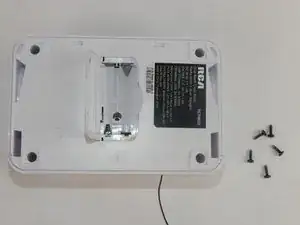

    • Remove the batteries on the bottom of the radio

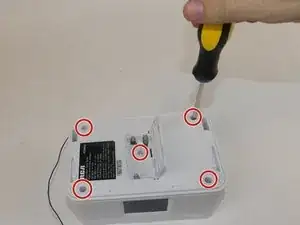

    • Locate and remove the five screws on the bottom of the radio with a Philips Head Screwdriver.

    • Make sure to keep your screws together so you don't lose them.

  3. nlxoE44EvkpjCqqw
    nlxoE44EvkpjCqqw
    vJKaetyCtRKJXW1U
    StKm21SIMRZwilbF

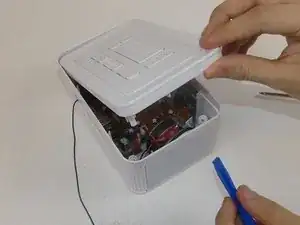

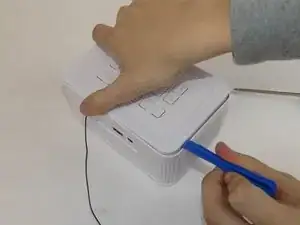

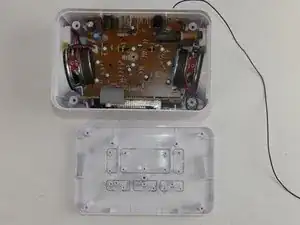

    • Grab your nylon pry tool and wedge it between the outer case and the top of the radio. Slowly pry open the top and remove it.

    • This may be more difficult to take off if the top hasn't been removed before, but it may be easier to turn the clock upside down for this step.

  4. 2qKWEElgQ2wn5uje
    2qKWEElgQ2wn5uje
    iOraapgDcpeBa12w

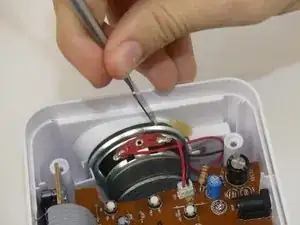

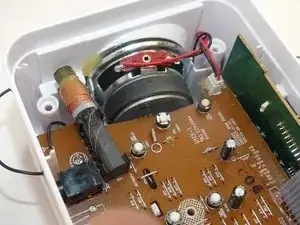

    • Using a black nylon spudger to carefully break the glue around the outside of the speaker so it can be dislodged.

  5. cf4dmRl5bFOEt6oZ
    cf4dmRl5bFOEt6oZ
    vRQvVBPQvAFXll3G
    ItwTSkGonIVhGSsT

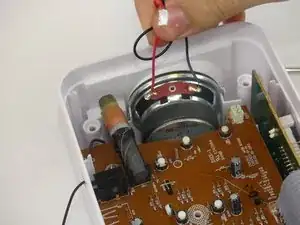

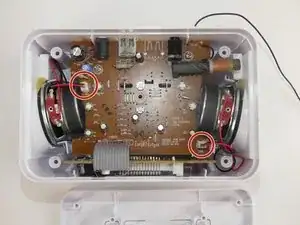

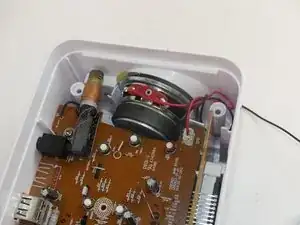

    • Locate the speaker plug for the speaker you wish to remove and slightly tug on it until it becomes unplugged

    • This can also be done with a pair of tweezers if you find there isn't enough space.

  6. BhjcwWBaSG3cWcIg
    BhjcwWBaSG3cWcIg
    MxUAcnIe3Ge4gOIR

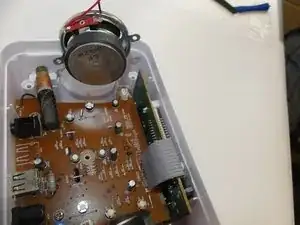

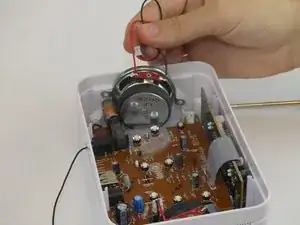

    • After the speaker cord is removed, pull the speaker straight up and out of the radio.

  7. VVdWcHX4ZWvRxMi1
    VVdWcHX4ZWvRxMi1
    yHyUFQV6iLtAdpI4

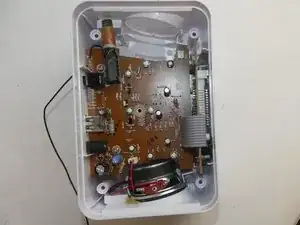

    • Once the speaker is removed, the inside of the dual alarm clock should look identical to the photo shown.

Conclusion

To reassemble your device, follow these instructions in reverse order.
