Braven BRV-1s Front Speaker Screen Replacement

Written By: Carmelo DeLeon
  • Comments: 0
Braven BRV-1s Front Speaker Screen Replacement

Difficulty

Easy

Steps

3

Time Required

10 - 15 minutes

Introduction

Learn how to properly remove a damaged speaker screen in order to replace it.

  1. GA1aqYOUkUFqdKfD
    GA1aqYOUkUFqdKfD
    fD4WsEfPCgPiwFZW

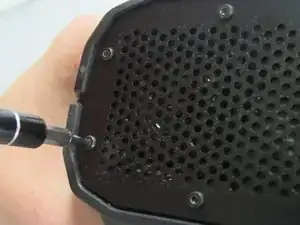

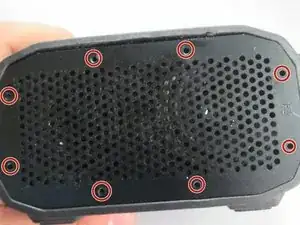

    • Using a 1.5mm hex screwdriver start unscrewing the 0.6mm screws holding down the front replacement screen

    • Repeat the unscrewing process for the other 7 screws

  2. wF4EP3YqFcdXJNvg

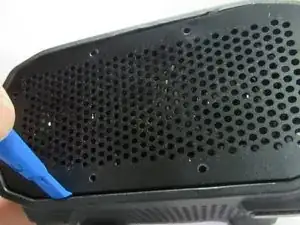

    • Use a plastic spudger to pry off the front speaker screen

  3. 31kOYjXkVKTReTTm

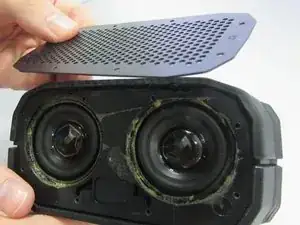

    • Peel off the front screen using your fingers after using the plastic prying tool/spudger

    • Be careful not to damage the glue underneath the front speaker screen, damaging the glue may cause the device to no longer be waterproof.

Conclusion

To reassemble your device, follow these instructions in reverse order.
