Cambridge SoundWorks OontZ Angle Plus Speakers Replacement

Written By: David Rice
  • Comments: 0
Cambridge SoundWorks OontZ Angle Plus Speakers Replacement

Difficulty

Moderate

Steps

16

Time Required

No estimate

Introduction

  1. w6D6xycB1qPH66RJ

    • Remove the six screw covers from the bottom of the device.

  2. XKs2DkFyP1wWT1kv

    • Starting from the screw covers, remove the front and back casing of the device.

  3. atTFqOw5oU2HSQie

    • Carefully pull off the casing covering the ends.

  4. GS3GPqJAeAofVmPJ

    • Slowly remove the casing from the top of the device.

  5. IYkTXjHZDQTfcDLd

    • Unscrew the five 11.5mm Phillips screws from the bottom plate.

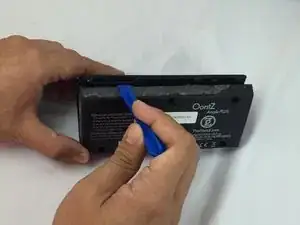

  6. 3QJCEFdB3MBSNlEm

    • Carefully pull apart the bottom and top plates, using the blue plastic opening tool.

  7. HBEpqcUDRSgWpGqn

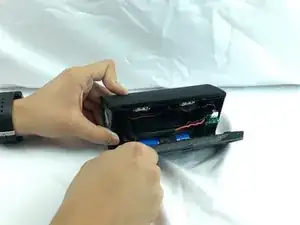

    • Once the plates are separated, slowly pull the bottom plate away from the top plate.

    • There are wires connected to both plates, so be cautious while doing this step.

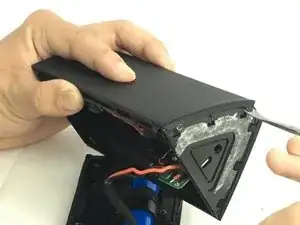

  8. P1ZeCaqAukLsIuVJ

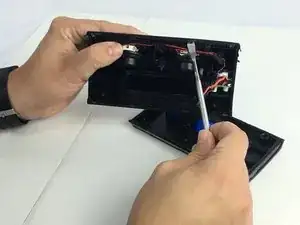

    • Use the metal spudger to bend the three bendable clamps on the ends of the speaker cover.

    • Beware, the bending process requires patience and extra time.

  9. IvT4ndq2FxO6Ij24

    • Next, use the metal spudger to bend the four bendable clamps on the bottom of the speaker cover.

    • This step also requires some time and patience.

  10. ElluPwkdl1JcHNYk
    ElluPwkdl1JcHNYk
    SySLObWhp2xr6nD3

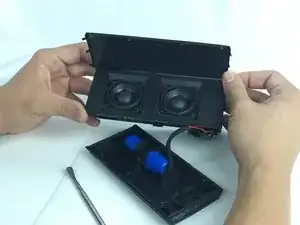

    • Finally, bend the speaker cover upward and it will slide out.

  11. S3hTXyMmCosySJtW

    • With some force, push the motherboard straight in toward the center of the device.

  12. VKXBmKohFLpNxKG6

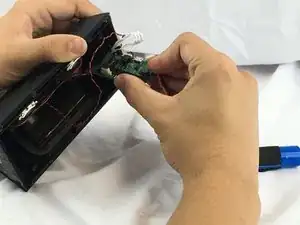

    • Pull the motherboard straight out of the device.

    • There is some adhesive on the motherboard that holds it in place. This makes the motherboard fit in the groove rather tight.

  13. GcCYJpDoe4JANwtp

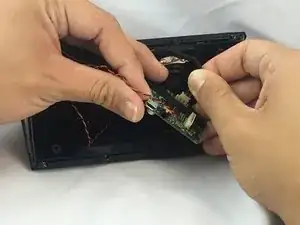

    • Unplug the speaker's connector from the motherboard.

  14. WflmEvr3ZTTJMsuF

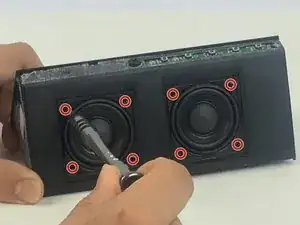

    • Unscrew the eight screws holding the speakers in place.

  15. epqQiHWcWDPJ3y2j

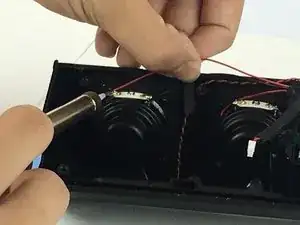

    • Desolder the the wires connected to the back side of both speakers.

  16. TuI5HjNTP1NFv1Xy

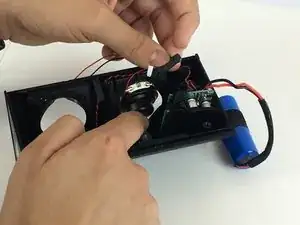

    • Carefully push the speakers out one at a time.

Conclusion

To reassemble your device, follow these instructions in reverse order.
