Introduction
In this guide, you will learn how to replace the main board in the EFS 18-135mm lens. The main board is crucial to the correct operation of the lens, passing focus commands from the camera to the lens.
-
-

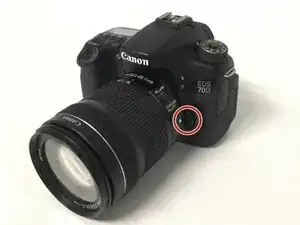

First, detach the lens by pressing and holding the release button highlighted in the picture.
-

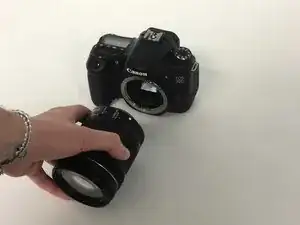

Next, grab the lens and rotate it counter-clockwise when looking at the camera.
-

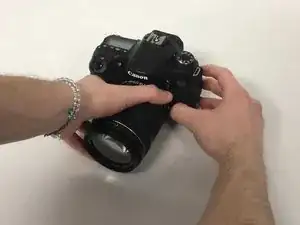

Finally, when the camera stops rotating, pull the lens away from the camera.
-
-
-

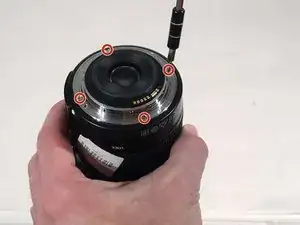

Remove the four 5.5-mm Phillips #000 screws for the lens mount ring (silver ring).
-

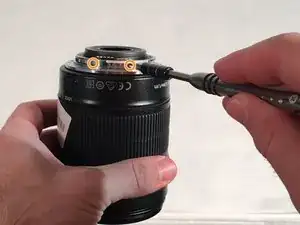

Remove the two 4-mm Phillips #000 screws mounting the main board connector.
-
-
-

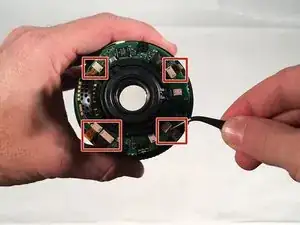

Using a spudger, pull the connector loose from the barrel switch ring assembly.
-
Set barrel switch ring assembly to the side.
-
-
-

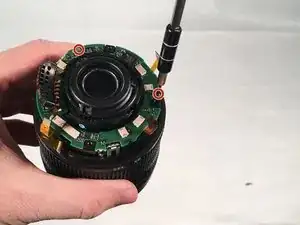

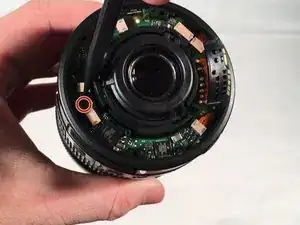

Remove the two 4-mm Phillips #000 main board mounting screws.
-

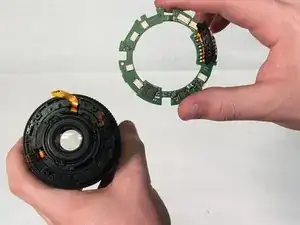

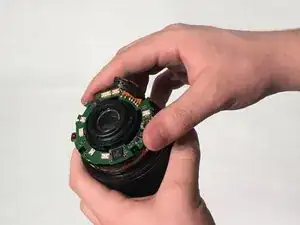

Remove the main board from the lens with your hand.
-
The main board is now successfully removed from the lens.
-
To reassemble your device, follow these instructions in reverse order.
