Cooler Master Laptop Fan Replacement

Written By: Britton Williams
  • Comments: 2
Cooler Master Laptop Fan Replacement

Difficulty

Easy

Steps

13

Time Required

10 minutes

Introduction

Overheating laptops can be a serious problem. Luckily devices like the Cooler Master Laptop

Fan can help keep your laptop cooler than the fans in your laptop can. This helps extend the life

of your laptop and allows better performance for your laptop as well. However even laptop fans

can fail and need to be replaced.

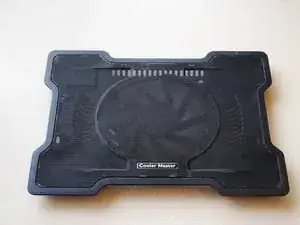

  1. QElrhR1yBUYMZWUB

    • Set your laptop cooler on the table and make sure it is not plugged into a laptop or powered on.

    • Never try to open the cooler while plugged in.

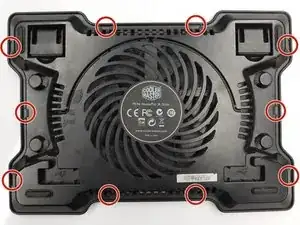

  2. dRfHDKghk6mAOGE5

    • Flip the Device over and find ten folded metal slots holding the metal cover onto the base.

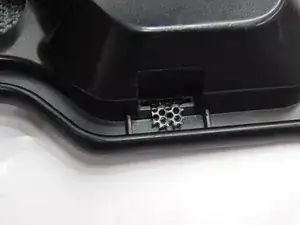

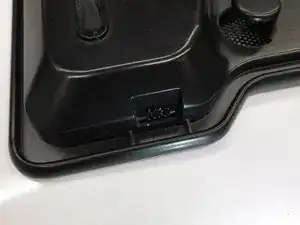

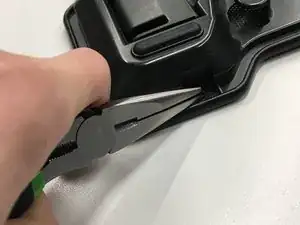

  3. SoR4LqLYoJEQPv6C
    SoR4LqLYoJEQPv6C
    fEJHftoUgUEkZZbB
    Nw5Nr2KaPuSIAGaY

    • Bend each metal flap straight up with the pliers to allow the metal cover to slide off.

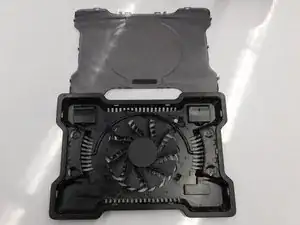

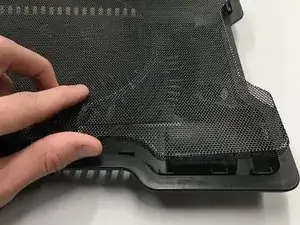

  4. DASlZSSGYw3ZvmSK
    DASlZSSGYw3ZvmSK
    Webtx5mpvVLHTAIp

    • Remove the cover and expose the inside of the Cooler.

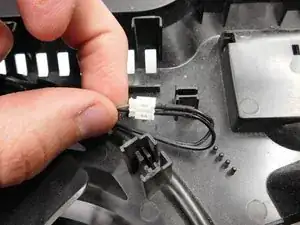

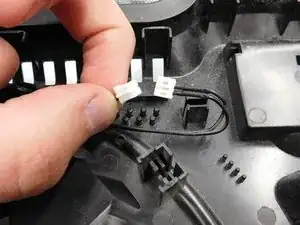

  5. E1AftAwYCQyQ51nF
    E1AftAwYCQyQ51nF
    31DyNCjHeUMsetLi

    • Unplug the power cable to the fan.

    • Make sure not to apply too much force and disconnect the wires to the device.

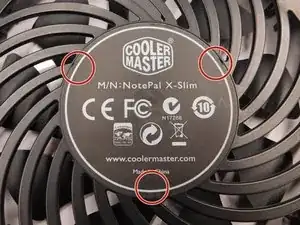

  6. 6jPVysurI4DoFGlW
    6jPVysurI4DoFGlW

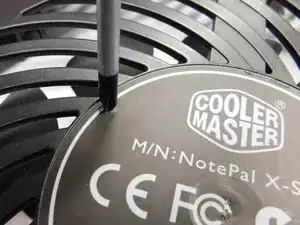

    sQLSxSuVA2h4bfWS

    • On the bottom of the base locate the screw holes under the sticker on the base.

    • Unscrew the three fan screws.

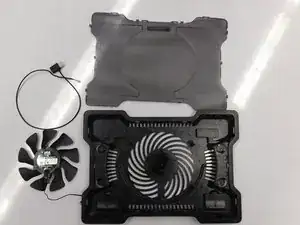

  7. FMfXZXfJTNPluwt1

    • Once all the pieces are taken apart, set aside the old fan and prep the new one for installation.

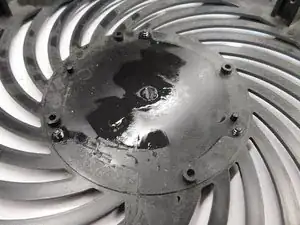

  8. Sg1PqLKmUKIMS2hA

    • Apply a small amount of thermal compound to the base where the fan sets.

    • Make sure to apply thermal compound to keep the fan from overheating and damaging the base.

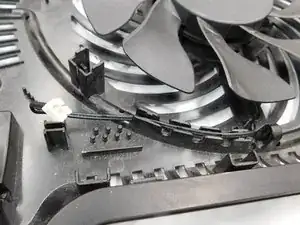

  9. oPXrD6hrpmR3vLHa
    oPXrD6hrpmR3vLHa

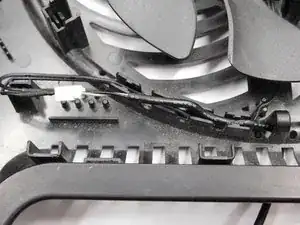

    iTbOkCRgRShM2giR

    • Connect power cable for the fan and place the cables back in their slots.

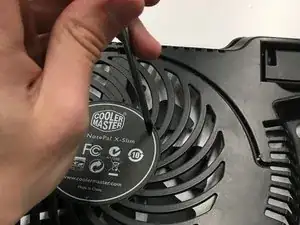

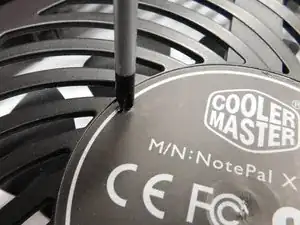

  10. SxSnRfaYVLQ21ARS
    SxSnRfaYVLQ21ARS
    DJXwRrduN6raeDHH

    • Screw fan back onto base.

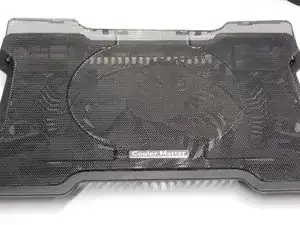

  11. 32yh4BZqZeFiJU6u

    • Place cover back on base.

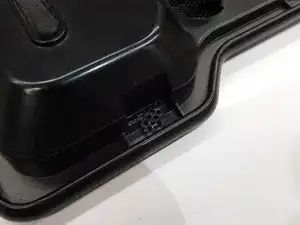

  12. lBTgY2cSFquBtZQ5

    • Fold all metal flaps back to hold cover on base.

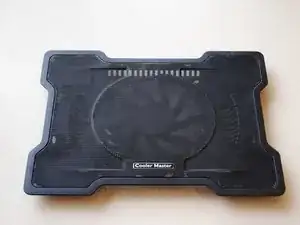

  13. kUSLcJjQ5EiJWduD

    • Flip it over and it's finished.

Conclusion

Plug in the USB to insure proper working condition. And the cooling pad fan replacement is done.
