Dell Alienware 14 Wireless Mini-Card Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware 14 Wireless Mini-Card Replacement

Difficulty

Moderate

Steps

23

Time Required

No estimate

Introduction

in this guide, we will be showing you how to remove and replace the Wireless Mini-Card.

  1. AUly4p24lkMiXbOL

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin. . After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Close the display, and turn the computer over.

  2. PlDt2b4iUPNjw5G4
    PlDt2b4iUPNjw5G4
    BjqZGYwnPEGTAVtm

    • Remove the screws that secure the base cover to the computer base.

  3. HNVkDR1WJNcvYwNp

    • Slide and lift the base cover off the computer base.

  4. ltgSXOiBYoVVsKTj

    • Align the tabs on the NEW base cover with the slots on the computer base and slide the base cover into place.

  5. UBOlWIMyyHalVQje

    • Replace the screws that secure the base cover to the computer base.

  6. GOwObvwAm6q2FMZn

    • Turn the computer over and open the display.

  7. ECGcOvDTxqjUEZhh

  8. JgZ2mXkYtIlOvXow

    • Remove the screws that secure the battery to the computer base.

  9. AVTaBmNYBiGADfla

    • Using the battery cable, lift the battery and release it from the tabs on the computer base.

  10. ENP4KacqHAB1Cses

    • Turn the computer over and open the display as far as possible.

  11. 6aORaEpkMHyHD5Lu

    • Press and hold the power button for five seconds to ground the system board.

    • Close the display and turn the computer over.

  13. lkagMTDgRiF1OdpQ

    • Align the tabs on the NEW battery with the slots on the computer base.

  14. VeaAdbLVWakCpoKa

    • Align the screw holes on the battery with the screw holes on the computer base.

  15. WUH1mRTLNN3GNsGN

    • Replace the screws that secure the battery to the computer base.

  16. IOvRG2DcjldTP3Fn

    • Connect the battery cable to the system-board connector.

  17. HZPUOQgWxHIEYFdd
    HZPUOQgWxHIEYFdd
    vyUAj1enVCRfUaeR

  18. wo3N6mhOQoXLsGBc

    • Remove the screw that secures the wireless mini-card to the system board.

  19. Bq41YfVVMtWggZx1
    Bq41YfVVMtWggZx1
    bQyn25AGWHOiVJVW

    • Slide and remove the wireless-mini card from the system-board connector.

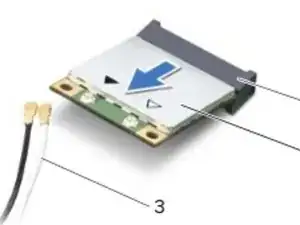

  20. s5HQMXwqgjJqL3uT

    • Align the notch on the NEW wireless mini-card with the tab on the system-board connector.

    • CAUTION: Use firm and even pressure to slide the wireless mini-card into place. If you use excessive force, you may damage the connector.

    • CAUTION: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the wireless mini-card and on the system-board connector, and realign the wireless mini-card.

    • CAUTION: To avoid damage to the wireless mini-card, never place cables under the wireless mini-card.

  21. ep3Gg6Kwm2nlLmii

    • Insert the wireless mini-card at a 45-degree angle into the system-board connector.

  22. xRUR41mp56lZwD1T

    • Press the other end of the wireless mini-card down into the slot on the system board and replace the screw that secures the wireless mini-card to the system board.

  23. hvswjln4n1kXt1bG

    • Connect the antenna cables to the connectors on the wireless mini-card.

Conclusion

To reassemble your device, follow these instructions in reverse order.
