Dell Inpiron 3542 Motherboard Replacement

Written By: Rachel lindsey
  • Comments: 2
Dell Inpiron 3542 Motherboard Replacement

Difficulty

Moderate

Steps

13

Time Required

No estimate

Introduction

If your Dell Inspiron 3542 laptop has stopped or if you just need to upgrade your system with new components, use this guide to replace the motherboard. The motherboard is responsible for overall performance, and your laptop will load a lot faster. If the motherboard stops working, then the entire system will begin to fail, including fans, lights, and more.

Before beginning, make sure to power off your laptop completely and disconnect from any external power source.

  1. 2UPtUQPOcQN4bCUt
    2UPtUQPOcQN4bCUt
    FRvky4QftH1hCX6f

    • Slide the latches on both sides of the laptop outward to unlock the battery.

    • Remove the battery from the computer.

    Hi. Looking for a compatible motherboard for dell inspiron 15-3542.

    eric.mwakibengele -

  2. pN1Gk3RohAUBbX3J
    pN1Gk3RohAUBbX3J
    UE2hTadOXbSu4wkO

    • Remove the screw. (1 x M2 x 3mm)

    • Slide down the access door and remove it.

  3. hLTrdDkyawhcjdGB
    hLTrdDkyawhcjdGB
    Zu3SNhdiFglSQ4OR
    SNcOQhTCx1DyZaQK

    • Remove the screw. (1 x M2 x 3mm)

    • Move the hard drive to the open area and remove it.

  4. tArbK6dDGToPvtva
    tArbK6dDGToPvtva
    bSLSV2a4mBxEIjW1
    QqAN5oQekXDwii4O

    • Unplug the black and white antenna cables from the wireless card.

    • Remove the screw. (1 x M2 x 3mm)

    • Remove the wireless card from the laptop.

  5. bLV6p6FjXkGkrOTN
    bLV6p6FjXkGkrOTN
    thUQlKnpxKKQMQjF

    • Remove all screws from the bottom of the laptop. (10 x M2.5 x 5mm)

    • Turn over the laptop and open it.

  6. xLT3vOQDieRopcJS
    xLT3vOQDieRopcJS
    USJ1LhB3xEV1TTsT

    • Use the plastic prying device to release the keyboard.

    • Lift the keyboard.

    • Unplug the cable connecting the keyboard to the laptop.

    • Remove the keyboard.

  7. IqgZF4acUddsVTRt
    IqgZF4acUddsVTRt
    KoG1OaxSQqPqYKuQ
    kVoEHuqEKOHJZQrA

    • Unplug the touch pad cables located on the palm rest.

    • Remove the screws. (3 x M2.5 x 5mm)

  8. LpXLngFOcu3cQTTB
    LpXLngFOcu3cQTTB
    TnACCYVjHWUa1TBE

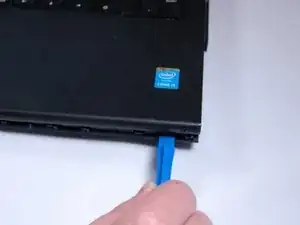

    • Carefully unsnap the palm rest from the rest of the laptop.

    • Remove the palm rest.

  9. 1JaFRrGyLBhKw2oc

    • Unplug the cable that connects to the motherboard.

    • Remove the DC jack from the laptop.

  10. 2HXVSIfVa22rRHMJ

    • Loosen the cables on the antenna.

  11. OYSmCnnYMSqyuCrx
    OYSmCnnYMSqyuCrx
    ouBs5UbNStkU42Rs

    • Remove the screws. (1 x M2 x 3mm)

    • Unplug the circuit board from the rest of the computer.

  12. 2hMTvdibiuEWwZ1X

    • Loosen the tape on the left side of the laptop.

    • Unplug the display cable.

  13. OJOEpydMJbmJGLsP
    OJOEpydMJbmJGLsP
    vdTJmKRLmujUYjPl

    • Unplug the cable on the bottom part of the mother board.

    • Remove the screws.

    • Remove the cable on the right side of the motherboard. (3x M2.5 x 5mm)

    • Remove the motherboard from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
