Dell Inspiron 15-3521 Optical Disc Drive Replacement

Written By: Andrew Dippre
  • Comments: 0
Dell Inspiron 15-3521 Optical Disc Drive Replacement

Difficulty

Very easy

Steps

2

Time Required

5 - 10 minutes

Introduction

  1. QiALNFHT62aWHtIQ
    QiALNFHT62aWHtIQ
    FHlDBCCVuqU2NaCB
    vid5hEnKCDnCCewh

    • We are removing the battery to avoid the possibility of an electrical discharge when working with this system.

    • Flip the laptop over.

    • Slide the latches toward the outside of the laptop to unlock the battery.

    • Lift the battery out of the laptop.

  2. JJZd6tPRDlxUcNdg
    JJZd6tPRDlxUcNdg
    dHlYAxlkYc6pmEbZ
    EpHQCRtPUgTasWNf

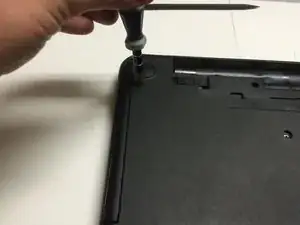

    • Using a Phillips head screwdriver, remove the optical drive screw.

    • Remove the optical drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
