Introduction
Follow this guide to remove the back case of your Dell Inspiron 16 7610 to access the internals of your laptop or replace it if it has broken or cracked.
-
-
Flip the device over, so the backside is facing up.
-
Use a Phillips #00 screwdriver to remove seven 4.00 mm screws.
-
Use the Phillips #00 screwdriver to unscrew or loosen two captive screws at the right and left corner near the hinges.
-
-
-

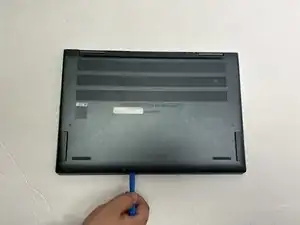

Use an opening tool between the seams of the top and bottom case and work your way around the perimeter to pry the back case off of the laptop.
-
Undo the clips gently as you pry the back of the device to avoid breaking them when removing the back case.
-
Remove the back case from the device.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
