Dell Inspiron 1750 Screen Replacement

Written By: Tina Rickard
  • Comments: 2
Dell Inspiron 1750 Screen Replacement

Difficulty

Moderate

Steps

12

Time Required

20 minutes

Introduction

This guide is useful for replacing a damaged or malfunctioning screen.

  1. JHP4UWVsDntRTe6P
    JHP4UWVsDntRTe6P
    dbGVwcstspIYBlPm

    • Unplug the laptop before changing the battery to avoid electric shock.

    • Place the laptop on a flat stable surface.

    • Flip the laptop over so the underside is visible.

  2. KIikyHykZooSNZhZ
    KIikyHykZooSNZhZ
    pjii2PvFmBOgqlMO

    • Locate the battery lock switch.

    • Slide the lock switch to the left (away from the lock symbol).

    • Slide the battery out away from the laptop.

  3. HNKRXchaJ1bMPgHP

    • Separate the screws by size and head type. Be sure to keep them in a safe place.

    • Remove the sixteen 2mm Phillips #00 screws from the bottom of the laptop.

    • Remove the two 2mm Phillips #0 screws from the hard drive port.

  4. OEwDTgyR4SvZIt6v
    OEwDTgyR4SvZIt6v
    MBjGGqpuykJFwPHO
    cjqxMTRixKRKhZFP

    • Keep your hand pressed firmly on the back panel to prevent it from falling.

    • Flip the laptop over horizontally and open up the lid.

    • Insert the tip of the plastic opening tool into the upper left corner of the panel.

    • Keeping its tip under the top panel, slide the plastic opening tool around the panel until the panel is completely loose. Next gently remove the panel.

    • Remove the four 2mm Phillips #0 screws at the top of the keyboard.

    • Slide the plastic opening tool around the keyboard until the keyboard is completely loose. Gently remove the keyboard.

  5. lrFFEjAi1yjUsjN3
    lrFFEjAi1yjUsjN3
    cDJubTrgNDtQCQHH
    Gq2fgnCkLEZxNdks

    • Do not lift the keyboard completely free to avoid damaging its connections to the laptop interior.

    • Locate the small black latch attached to blue tape.

    • Lift the small latch with your finger and pull the blue tape from its port.

    • Slide the keyboard away from the mousepad and set it aside.

  6. bFnELvHRogRw2XLn
    bFnELvHRogRw2XLn
    ZKKOJ1ijPtCRORWt
    YbIKxLtEKd4Zssw4

    • Always pull wires from their plastic ends, not their cables, to avoid wire damage.

    • Locate the three wires in the top left corner of the metal panel.

    • Use the spudger to push the two cables out of their ports.

    • Pull the blue tab directly up to remove middle wire.

  7. Ms14KhmVBJhoVICq
    Ms14KhmVBJhoVICq
    VbZjMQGmIMdY4EpX

    • Remove the three 1mm Phillips #00 screws on the metal plate.

    • Lift the black cover and slide the blue tab away from the cover.

  8. EWWYlTmI1FSkfJsq
    EWWYlTmI1FSkfJsq
    XFlCCPw5E1DvEqJj
    4aVgQDpkdU2iQmi2

    • Always pull wires from their plastic ends, not their cables, to avoid wire damage.

    • Gently remove the three grey wires from the metal tabs.

    • Insert the tip of the plastic opening tool into the bottom left corner of the panel.

    • Keeping its tip under the top panel, slide the plastic opening tool around the panel until the panel is completely loose.

    • Gently lift off the top metal panel.

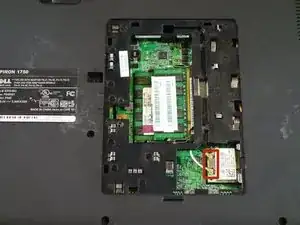

  9. atGOcgEdlaD3BVPy
    atGOcgEdlaD3BVPy
    Jnat61DXeHOZ2UVM
    ahJKx2EJg6sBrN6q

    • Use the spudger to lift the wires from their connections.

    • Remember to pull wires from their plastic ends, not their cables, to avoid wire damage.

    • Flip the laptop over and pull the connections through until they are free from the laptop interior.

  10. DThGxdZynkCvifuG
    DThGxdZynkCvifuG
    JMnSQc2jTbeBCIEE

    • Remove the two 2mm Phillips #0 screws from the screen hinges.

    • Lift the screen away from the laptop and gently set it down.

    • Put the rest of the laptop aside.

  11. PxZTGqvSjYGcAG6Y
    PxZTGqvSjYGcAG6Y
    UHNevOaL6VhCD3QD
    hcqKa1XST3FW2ZGh

    • Use the plastic opening tool to remove the plastic cover from the screen.

    • Remove the eight 2mm Phillips #0 screws from the corners of the screen.

    • Lift the screen away from the back panel.

  12. qYqDuP4wusOMUgWV
    qYqDuP4wusOMUgWV
    RI3JklSupvOhLjEC

    • Remove the four 2mm Phillips #0 screws from the sides of the screen.

    • Remove the side railings from both sides of the screen by pulling the railings gently away from the screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
