Introduction
Use this guide to help you replace the hard drive in a Dell Inspiron 1305.
Tools
-
-
Slide the battery release switch away from the lock symbol until you hear the battery click.
-
Slide the battery towards the back of the laptop until it comes free.
-
-
-

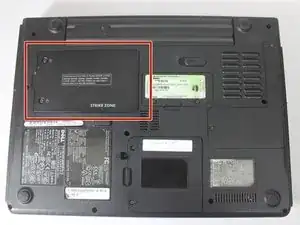

Locate the hard drive access door.
-

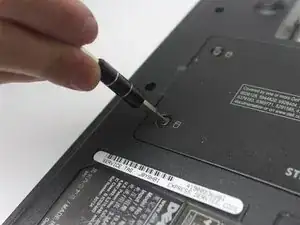

Remove the two 5.5mm screws with a #00 Phillips screwdriver. These screws are securing the hard drive access door.
-
-
-

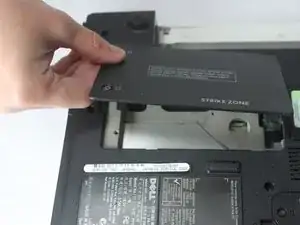

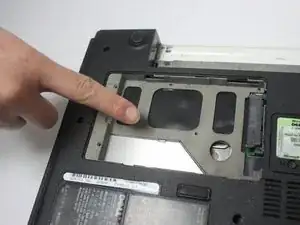

Using your fingers, open and remove the access door from the laptop, exposing the hard drive underneath.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
