Dell OptiPlex GX260 Hard Drive Replacement

Written By: Kevin Schapansky

Comments: 7

Dell OptiPlex GX260 Hard Drive Replacement

Difficulty

Easy

Steps

Time Required

10 minutes

Introduction

Parts

Step 1

Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.
Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.
Note: Some force may be required to push in the oval buttons open the PC case.

cool de faires des sites comme ca :)

baptiste Prando - 05/04/18

Excellent - Only comment - do the the green brackets come with a new hard drive or should I leave them inside the case for the next owner - Removing to donate to recycling

sheila_jones - 17/08/19

I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

Elvis 1357 -

I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

Also, want to add another HD....but, there are no cables at all?

Elvis 1357 -

Step 2

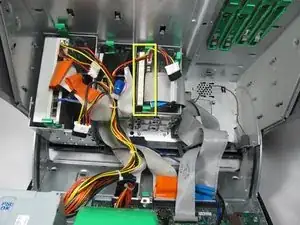

Identify the Hard Drive in the case.
If there is more than one hard drive installed the process is the same for each hard drive.

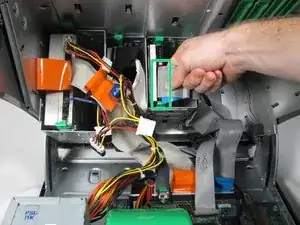

Remove the power cable from the hard drive by squeezing the side tabs in and pulling gently.
Remove the IDE cable from the hard drive by gently pulling the ribbon cable out.
