Dell OptiPlex GX260 Power Capacitor Replacement

Written By: Kevin Schapansky
  • Comments: 5
Dell OptiPlex GX260 Power Capacitor Replacement

Difficulty

Difficult

Steps

12

Time Required

20 - 40 minutes

Introduction

  1. xo11ihLhRiR3lR6J
    xo11ihLhRiR3lR6J
    fOFlJOfxZjuiQPy2

    • Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.

    • Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.

    • Note: Some force may be required to push in the oval buttons open the PC case.

    cool de faires des sites comme ca :)

    baptiste Prando -

    Excellent - Only comment - do the the green brackets come with a new hard drive or should I leave them inside the case for the next owner - Removing to donate to recycling

    sheila_jones -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Elvis 1357 -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Also, want to add another HD....but, there are no cables at all?

    Elvis 1357 -

  2. kDuKnjNTvKLAwsAm
    kDuKnjNTvKLAwsAm
    HDLEYttK45EOCcRK

    • Disconnect the fan cable from the motherboard.

  3. 45UAj2kROldnvXxH
    45UAj2kROldnvXxH
    uQaVW3BJWwRLBYEg
    WCmPvafCXvMCjumm

    • On the rear of the desktop, push the two circled black buttons straight in with a small pointed object while pulling up on the fan.

    • Once the fan is released, lift it straight up and out of the case.

  4. ER1XCQPVi1qnuCco
    ER1XCQPVi1qnuCco
    dSX3EfPGFYtpyNtp

    • Disconnect the ATX power cable to the motherboard.

    • Disconnect the P4 12V(4x2) power cable from the motherboard.

  5. WVDiBCg4BlLPWUI4
    WVDiBCg4BlLPWUI4
    ZyiWWt3MAQOIQ6ea
    IhewFNu5SWZ2MqgX

    • Disconnect the front panel ribbon cable by gently pulling it straight up.

    • Disconnect the hard drive ribbon cable by gently pulling the blue tab away from the motherboard.

    • Disconnect the optical drive ribbon cable by gently pulling the orange tab away from the motherboard.

  6. TgQCj6F2YL4QXToJ
    TgQCj6F2YL4QXToJ
    EssfEvBTqR1oGSUF

    • Disconnect the floppy drive drive ribbon cable by gently pulling the black tab away from the motherboard.

    • Disconnect the optical drive audio cable connector from the motherboard.

    • Disconnect the audio input/output cable from the motherboard.

  7. 2kjXKRRdBWJFnAwY
    2kjXKRRdBWJFnAwY
    k4OqAr6GWT3yBmRx

    • Lift the metal tab near the right corner of the motherboard.

    • Pull the green tab toward the front of the PC to release the motherboard.

    • From the rear of the PC, push the ports in while lifting the motherboard up and flipping it away from you.

  8. tUPHSQ4nRy466Gd5
    tUPHSQ4nRy466Gd5
    GEUXXWv2uPWGBDLS
    aKkb1rupLIenreX1

    • Stand the motherboard up as shown.

    • Insert the flat end of a spudger into the slot in the motherboard mounting plate and press the release tab while pushing the extension plate to the right with your thumbs until it comes off..

  9. EZSFeKVxcSS1MFvm
    EZSFeKVxcSS1MFvm
    iVTACHAyarBhv6md
    eQvjSM6AcIIlZYNq

    • Remove the screw at the rear of the motherboard.

    • Grasp the heat sink with your left hand and the I/O port panel with your right hand and pull to separate motherboard from the metal base.

    • If you are replacing the motherboard refer to the great iFixit guide for removing the CPU.

    • With the motherboard out of the tray, let your soldering gear warm up and get a desoldering braid.

    • Since this isn't a Optiplex GX260 motherboard, I have removed the heatsink to get rid of any confusion.

  11. kuAi61PVNRIankeO

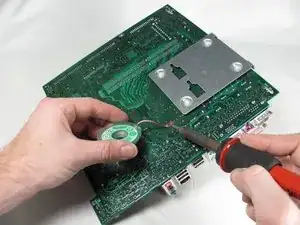

    • Take note of which way the positive lead marker on the capacitor is facing before removing it. You will need to know for the next step.

    • Desoldering can damage motherboards, so first practice on a board you don't need. Use a 40-50W soldering iron with a chisel tip and 0.080" wide desoldering braid. Also helpful are rosin flux and 60/40 tin/lead solder, in case all the solder doesn't come out. Wiggle desoldered leads to verify they're free, and never pull on any that aren't.

  12. wbP3VBqI1uRdemwP

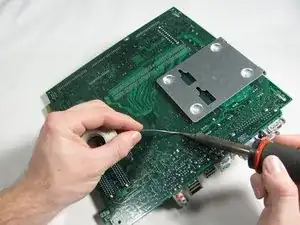

    • Install the new capacitor in the holes left by the old one, then solder it into place.

    • Caution: Ensure that the new capacitor is inserted with the positive lead mark facing the same direction as the old capacitor. If the direction is switched, the new capacitor will fail.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Kevin Schapansky

Member since: 05/10/10

1457 Reputation

One comment

Fantastic handbook.Thanks a lot, really

Giuseppe -
