Dell Precision 7560 NVMe Solid-State Drive (Expansion) Replacement

Written By: Hector
  • Comments: 1
Dell Precision 7560 NVMe Solid-State Drive (Expansion) Replacement

Difficulty

Moderate

Steps

3

Time Required

5 minutes

Introduction

This guide shows how to replace NVMe expansion sticks on a Dell Precision 7560 laptop. You will need to pull gently.

  1. ejmmogUrgsL4bFIF
    ejmmogUrgsL4bFIF
    5gBFyOu4aMoEHoWj
    6HdglDh5ByK4BOQq

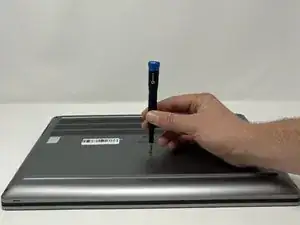

    • The screws holding the back cover in place can not be removed.

    • Use a Phillips #0 screwdriver to loosen the the eight 5 mm captive screws in the bottom cover.

    • Remove the back cover by lifting at the corners.

  2. WZLjQXhKfOKpkNUC
    WZLjQXhKfOKpkNUC
    2w1OIIjJHXOyQlFN

    • Use the Phillips #0 screwdriver to unscrew and remove the two 2 mm screws that secure the expansion NVMe SSD sticks.

  3. WCeYug1CLGXTB3cC
    WCeYug1CLGXTB3cC
    SoxBdBKICNbJ2LdU

    • Disconnect the left SSD stick by pulling its exposed end towards you.

    • Repeat the same procedure to the right SSD stick.

Conclusion

To reassemble your device, follow these instructions in reverse order.
