Introduction

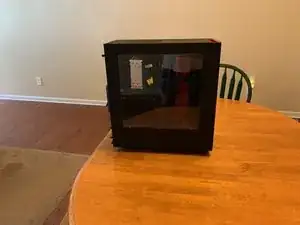

  1. DXSa54dqGVs5IyVq
    • Minimize exposure to items that can charge up and produce static electricity.

    • Use an anti-static wrist band.

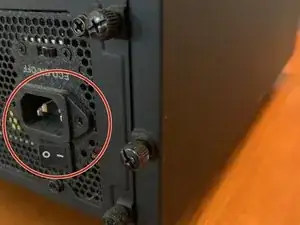

  2. ZpkcqKAXHU4hf4lR
    • Power off PC via Windows.

    • Switch off Power Supply

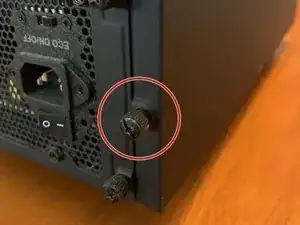

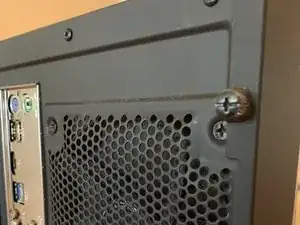

  3. XyDxQRIR1aC1IBtO
    XyDxQRIR1aC1IBtO
    FbSjgXNEpcHUr3mL
    • Put screws where you wont lose them

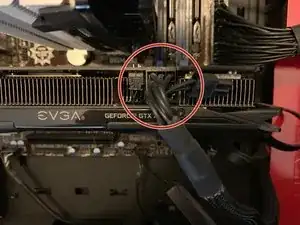

  4. jyLBQYD1rQNIZtqw
    • Be gentle to not pull with to much force when removing power cables.

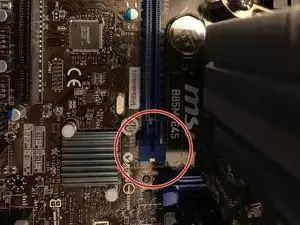

  5. DQRIXylOKfQ3pqqw
    • Try not to touch other components.

    • Gently pull the card out of the slot.

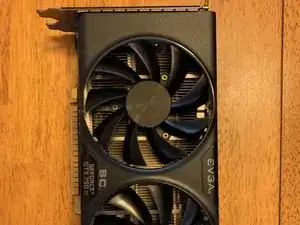

  6. x5IkYkxmPudCWoah
    • Verify that the notch in the connector matches the motherboard before sliding in.

    • Carefully slide in GPU until you hear a click on the motherboard.

  7. whg1lYyWEcOBQdF1
    • Insert wisdom here.

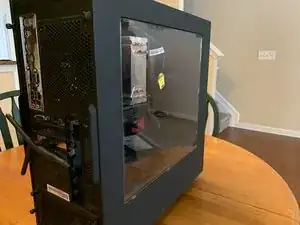

  8. jTBIBQiY4oFGdDBQ
    • Use same screws from step 2.

    • Flip power supply switch back to on.

    • Plug in PC and turn on.

    • If PC does not post go back through the steps to see if you missed something.

    • Go to manufacturer's website or use the CD that came with the card to download the latest drivers for the GPU to ensure better stability of GPU.

    • Enjoy your new GPU.

Conclusion

To reassemble your device, follow these instructions in reverse order.
