Disassembling IBM WorkPad c3 Front Case

Written By: Emily Falkenstein
  • Comments: 0
Disassembling IBM WorkPad c3 Front Case

Difficulty

Difficult

Steps

6

Time Required

15 - 45 minutes

Introduction

This guide will present easy, step by step instructions on how to remove the front side of the IBM WorkPad c3 case. This case is glued together, so time will need to be spent heating the glue. This time varies, but you should expect to spend at least 10 minutes heating.

  1. vkjSxFvQayjsb6CV
    vkjSxFvQayjsb6CV
    BbCEVQxMEfmOWBhV

    • Turn the device over so that the screen is facing down.

    • In the next step the device will be heated, so the screen must be turned over to prevent heat damage to the LCD/Digitizer.

  2. 2B5VjqrgTI1kQ2UO

    • Using a hair dryer, slowly heat the edges of the WorkPad.

    • Spend at least one minute heating each side of the device. This will melt the glue holding the case together, and allow it to be removed.

    • Be sure not to touch the device directly after heating as it will be extremely hot. Use a towel or oven mitt to grab it.

  3. GmpbVIcrkOn12FFS
    GmpbVIcrkOn12FFS
    CWWlVUhCL4vyAHWL

    • Use a plastic opening tool to pry the back case from the WorkPad.

    • If the rear cover is not coming off very easily, you probably need to reheat the case in order to sufficiently melt the glue.

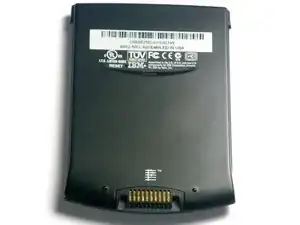

  4. qddcrMKpGnrlJoSX
    qddcrMKpGnrlJoSX
    Ep4QGQB3Ek2uQadY

    • Turn the device over, so that the screen is laying on a flat surface.

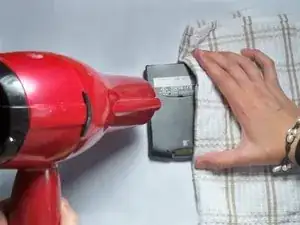

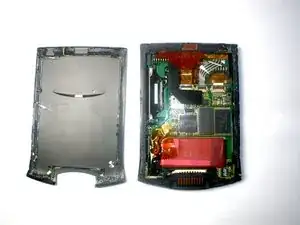

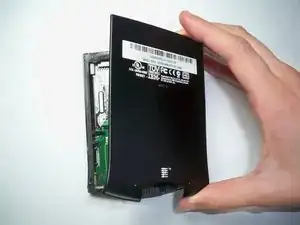

  5. JVJ6V3lTuj4FyMuU
    JVJ6V3lTuj4FyMuU
    x2FOWI5Rd6Z4cCso
    6OcAH4xgI3BYNGDC

    • If the back case has already been removed, carefully place it on the WorkPad to protect the circuitry inside from the heat.

    • Using the hair dryer, slowly heat the edges of the device. Spend at least 1 minute on each side, thoroughly heating the case.

    • The LCD/Digitizer combo is very sensitive to heat, and can easily be ruined if it is directly exposed to the hair dryer. Verify that the screen is face down.

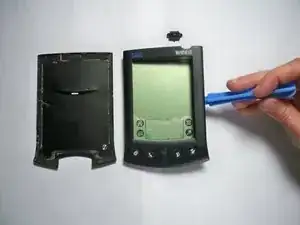

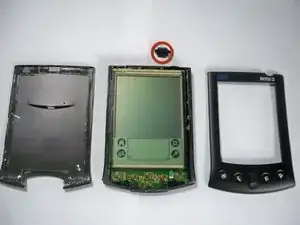

  6. 5bpgVqoAmpCfExV5
    5bpgVqoAmpCfExV5
    a2ERaX1pebpkBt5Y

    • The device will be extremely hot. Use a towel or oven mitt to grab it.

    • Using the Plastic Opening Tools, take the front of the case off.

    • If the case is difficult to remove, try repeating step 2.

    • The power button at the top of the device will be loose once the front part of the case is removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
