Euro Cuisine WM520 Heart Shaped Waffle Maker Disassembly

Written By: Liam higgins
  • Comments: 0
Euro Cuisine WM520 Heart Shaped Waffle Maker Disassembly

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

This tutorial will show you how to take apart the Euro Cuisine WM520 Heart Shaped Waffle Maker through a step by step process of removing screws. Be sure the iron is unplugged before taking apart because it heats up very quickly. Be sure to remove bottom rubber feet to take out two screws.

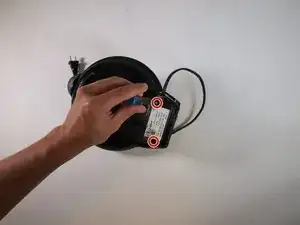

  1. eGVI3DoB5e4hQ4qP

    • Remove the two 10 mm screws from the plastic wire covering using a T5 Torx screwdriver.

    • Remove the covering.

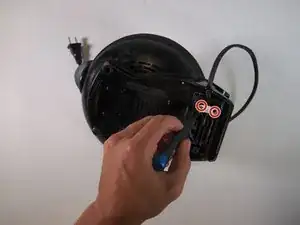

  2. OnVFEaTEGX3jIXPI

    • Remove the two 11 mm screws from the white plastic holding the outlet cord in place using a Phillips screwdriver.

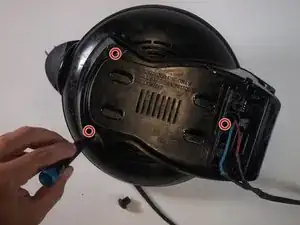

  3. itKYct2H4bd41hDX

    • Remove the three 20 mm screws from the base of the iron using a Phillips screwdriver.

    • Two screws are beneath the rubber feet and one is in the wire compartment.

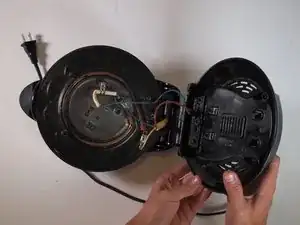

  4. IpKguFgQmV4SPfOq

    • Remove the base of the waffle maker to expose the heating conductor and wires.

Conclusion

To reassemble your device, follow these instructions in reverse order.
