Flip Video Ultra USB Spring Replacement

Written By: Nathaniel Ruf
  • Comments: 0
Flip Video Ultra USB Spring Replacement

Difficulty

Moderate

Steps

9

Time Required

10 minutes

Introduction

This guide will help you replace the USB spring should it need replacement. The only tool needed is the Phillips #1 Screwdriver. It should only take 10 minutes.

  1. KNtuLhXIgNgCgcwh

    • Unlock the battery cover by sliding the switch to the unlock position.

  2. OU3vxdcPAuPPNKlK

    • Remove the battery cover by sliding it down the camera.

  3. TNFAER3dBhkdNQja

    • Remove the batteries

  4. 4yqhcPa4PeZLtrDF

    • Slide the black upper casing off from the device.

  5. HrgxPgory4n5Mjgu
    HrgxPgory4n5Mjgu
    yr1NMiDLwhxNBMbC

    • Remove the six 1mm screws from the back and upper casing with the Phillips Head screwdriver.

  6. xsLscaiHUTLJe1PK

    • Remove the top casing from the bottom to reveal the inner circuit board.

  7. khohOAPaMbqWmUOx
    khohOAPaMbqWmUOx
    oDFmQL3YyUjy5MLh

    • When removing the back panel, the rubber buttons will become loose and likely fall off the board. This is normal and can easily placed back on the board once finished.

    • Remove the six 1mm screws with the 1 Phillips head screwdriver.

  8. EOcVxvemkIVakBtT

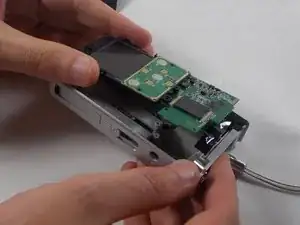

    • Gently separate the circuit board from the casing.

  9. YmN16YUHAEpdcKFi

    • Using the Phillips head screwdriver, disconnect spring from the plastic nubs.

Conclusion

To reassemble your device, follow these instructions in reverse order.
