Introduction

If your speakers are damaged or not working this guide will show you step-by-step instructions on how to replace your speakers

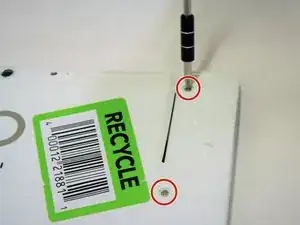

  1. 2gN3ZT1LcTcDtYKb
    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS

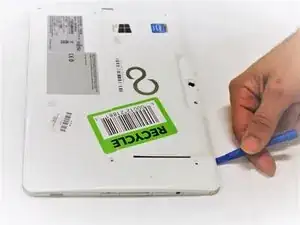

    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

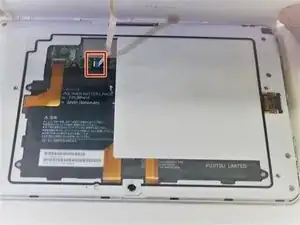

  3. qfg4IOgJlri6pRnq
    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw
    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh
    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB

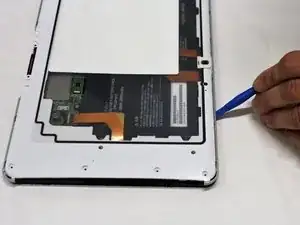

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

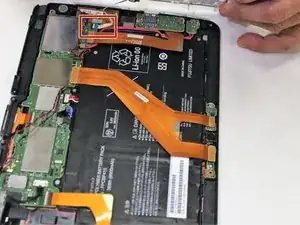

  7. VakGTMiHnkGUFgXF
    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

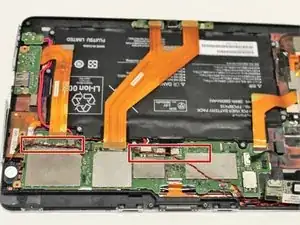

  8. 5rcPUPx33jiSrSeY
    • Pull up the cord that connects the battery to the motherboard

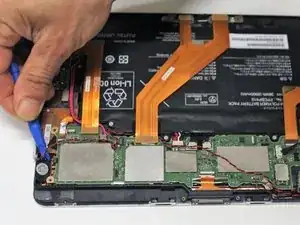

  9. rxniQXqUrlHmEDUb
    rxniQXqUrlHmEDUb
    3Oytcgs2nIUnCm6t

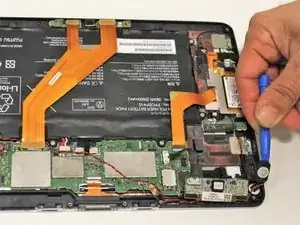

    • Use the narrow plastic opening tool to pry the speakers from the casing.

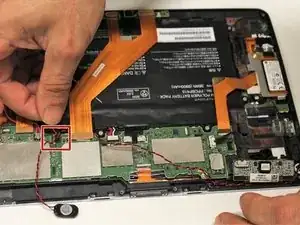

  10. XqLxFREH3WOwQSUM
    • Unplug the speaker wires from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
