Introduction

We will walk through removal the USB port from the Fujitsu Lifebook Stylistic Q584.

  1. 2gN3ZT1LcTcDtYKb
    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS
    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq
    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw
    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh
    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB
    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  7. VakGTMiHnkGUFgXF
    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

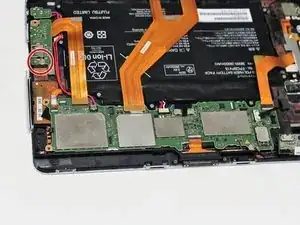

  8. dfZlERhWFCZkVvDv
    • Remove 2mm screw with a PH1 screwdriver from USB board

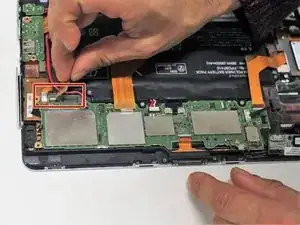

  9. 4jkLbYUwonhQognG
    • Disconnect USB periphery ribbon from motherboard

  10. VoaeqHjd3mqhpKNh
    • Pull USB board up to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
