Furnace Humidifier Evaporator Pad Replacement

Written By: Zia Ahmed
  • Comments: 0
Furnace Humidifier Evaporator Pad Replacement

Difficulty

Moderate

Steps

8

Time Required

30 minutes

Introduction

Furnace humidifiers are built in almost every household and their function is to help add moisture to the air to keep homes warm especially during the winter. If your furnace humidifier is not working optimally and producing enough warmth, this guide is helpful as there are times when you won’t be able to use an old evaporator pad optimally. Eventually, all the dust and particles can cause mold to grow on the evaporator pad. So, to find a solution to this, one would need to buy a new evaporator pad and replace the old one.

  1. L6aRrNUsqaOVM1MT

    • Turn off the humidifier. (Set the humidistat to 0% humidity)

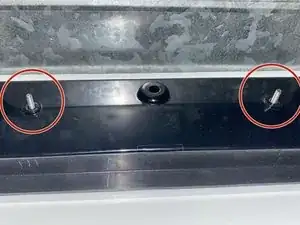

  2. b2n5RotYrDBVO5RJ
    b2n5RotYrDBVO5RJ
    6CqUlEZifvMpALLL

    • Remove the nuts and clips holding the top cover of the cabinet assembly to the bottom cabinet housing.

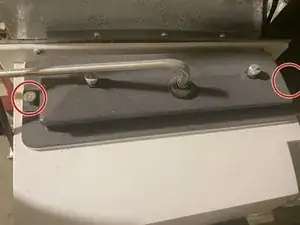

  3. tlyxfivuy3niwvAf

    • Remove the side clips or fasteners.

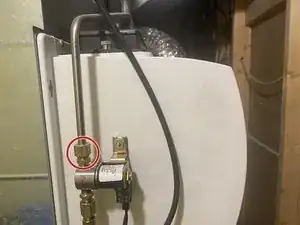

  4. slqGEkdYbXhn5FhX

    • Use an adjustable wrench to loosen the nut which holds the water distributor tube and swing the tube out of its secured place.

  5. MF6LdhwOH55kIIPI

    • Remove the top of the bottom cabinet housing and take out the evaporator pad.

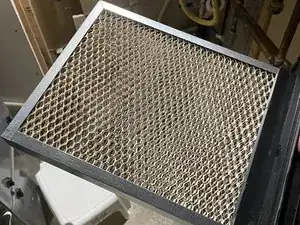

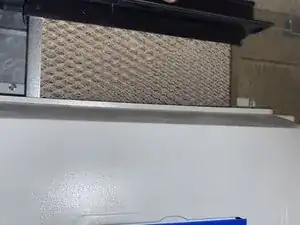

  6. 4tYbquQp6eX1WCMv
    4tYbquQp6eX1WCMv
    AStxV2RHIbnx26Ep

    • Place the new evaporator pad inside the clean bottom cabinet.

    • The sides should guide it into the correct position.

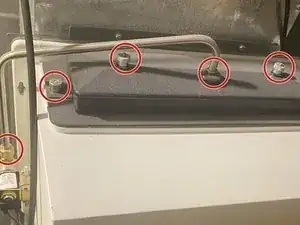

  7. SvaETDALyrfBGIjg

    • Replace the clips, nuts, and bolts removed in steps 2 through 4.

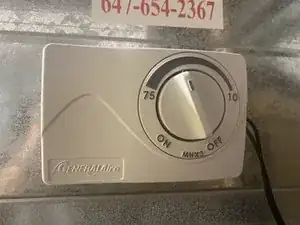

  8. aLcM3PsfJcKUfhka

    • Turn on the humidifier.

Conclusion

Enjoy your warm air! Your repair is complete!
