GIGABYTE 15.6" P55Wv6-NE2 Disassembly

Written By: Justin Koch
  • Comments: 2
GIGABYTE 15.6" P55Wv6-NE2 Disassembly

Difficulty

Easy

Steps

3

Time Required

15 minutes

Introduction

This is a basic disassembly guide and parts overview of the GIGABYTE 15.6" P55Wv6-NE2. Mine shipped with a 128GB Lite-On M.2 2280 SSD and a no-name 1TB HHD. The laptop does support NVME M.2 SSDs. It came with 1-16GB SODIMM by Crucial leaving room to expand upto the supported 32GB. I plan on adding an additional 16gb of ram, replace the M.2 SSD with a Samsung 960 Evo 250GB NVME SSD and a 1TB Samsung 850 2.5" SSD.

http://www.gigabyte.us/products/product-...

  1. 2wWKhXuYdrBLsOQQ
    2wWKhXuYdrBLsOQQ
    kMtNSE6TgwmS6dOR
    vfZMqqDBU6NLNrBB

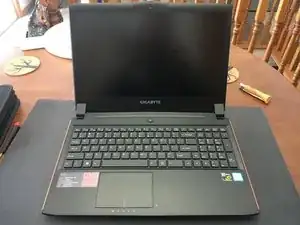

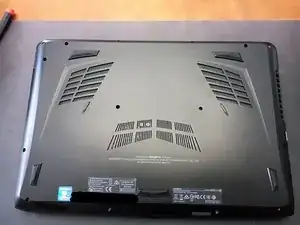

    • As with all electronics, ensure that you are in a static free environment, and the computer is turned off.

  2. XDRKGIqDbJidUxae

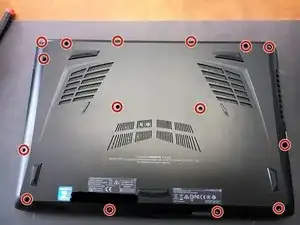

    • Use a PH00 to remove the 15 Screws holding in the bottom cover. There are no large clips holding in the back cover, so gentle pressure should release it.

    Pull up on the back cover starting from the hinge area.

    Charlton Lai -

  3. 1326ebKPYMDvjuuS
    1326ebKPYMDvjuuS
    Ukus14XEwIUNWAAP
    jUBZCbngjNUeBdni

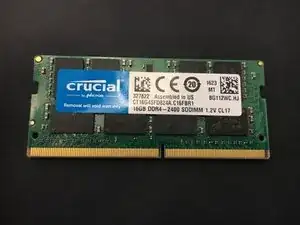

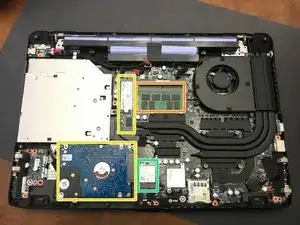

    • There are 2 SODIMM Slots, Mine came with 16GB of Crucial Memory.

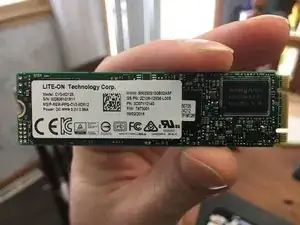

    • The M.2 2280 SSD that mine came with was a Lite-On. The 2.5" 1TB HHD was nondescript.

    • The wifi chip is an Intel 8260NGW

Conclusion

To reassemble your device, follow these instructions in reverse order.
