Introduction

GPD WIN is a very good game console.

However, I was so absorbed in it that the controller got messed up.

At this rate, you will not be able to perform any tricks or reload!

Replace the silicone pad immediately

  1. fKGj1YjYAWnHO3Vy
    fKGj1YjYAWnHO3Vy
    6OVuHe3NFSbwm33B

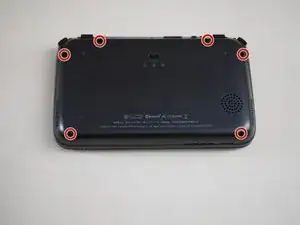

    • Remove the case screws

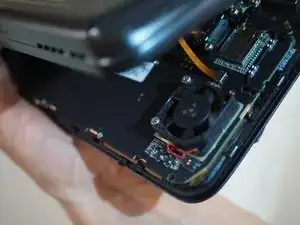

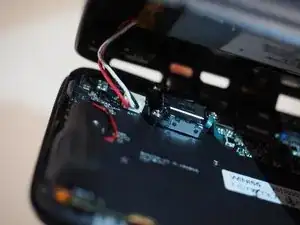

  2. 1RleITiSXPrlAtUR
    1RleITiSXPrlAtUR
    KtSHUkGuvePPljfr
    xNYLqHCNQufDuFTV
    • There is a small space beside the keyboard, insert the pick and remove the claw

    • As you open the device, you can see that the flexible cable and the battery cable are connected. Then unplug the connector.

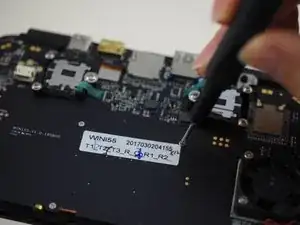

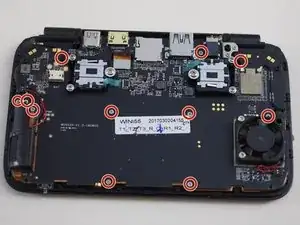

  3. MEwS4wWghyvHx3tA
    MEwS4wWghyvHx3tA
    mcI5DdLYMDSWvvD4
    • Remove screws on the logic board.

    • Because some black threads are mixed, do not forget to remove

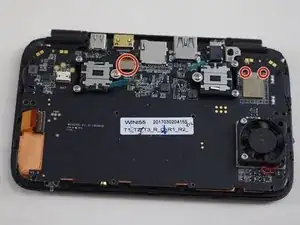

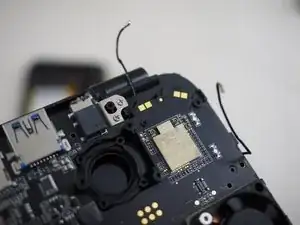

  4. E5DwUQbKtrdeBTeZ
    E5DwUQbKtrdeBTeZ
    oZLZhXDuFwDJ2Xcg
    • Remove Wi-Fi antenna cable and LCD connector

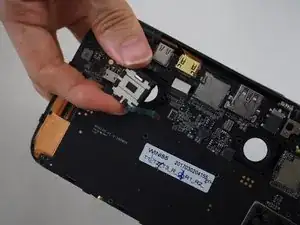

  5. 1wbQDBLWcSc1JsYv
    1wbQDBLWcSc1JsYv
    CAuocEvT4TGHsFwV

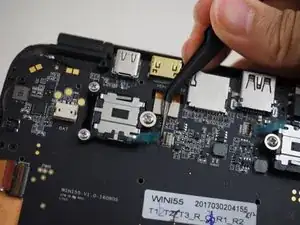

    • Remove the screws of the joystick and remove the flex cable from the connector.

    • Then, it is ready to pull logic board out of the case.

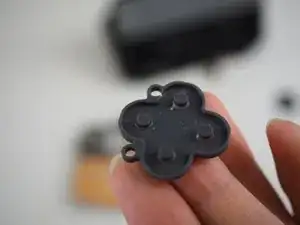

  6. 3BQkpfpamrSUalES
    3BQkpfpamrSUalES
    hVKK2GYbA54grcXo

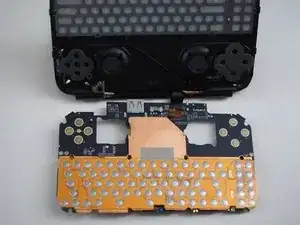

    • You can access the silicone pad by removing the logic board.

    • Replace a sticky silicon pad

Conclusion

To reassemble your device, please follow these steps in reverse order.
