Garmin Dezl 760LMT Screen Ribbon Cable Replacement

Written By: Ryan Williams
  • Comments: 0
Garmin Dezl 760LMT Screen Ribbon Cable Replacement

Difficulty

Easy

Steps

2

Time Required

2 minutes

Introduction

  1. 6GgkPg4aeNZdaHoN
    6GgkPg4aeNZdaHoN
    CAD4Uk1CfifV4CGW

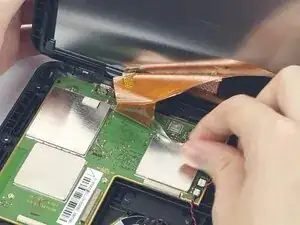

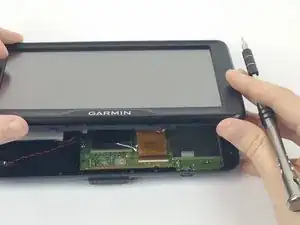

    • Lift the screen opposite where the "GARMIN" logo is located. Remove the clear tape holding the ribbon cable to the motherboard.

  2. yKUoE5TAGRP5ZfS4
    yKUoE5TAGRP5ZfS4
    kUYrZqKMPDNhOeBK

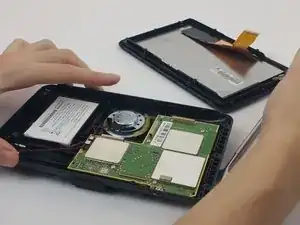

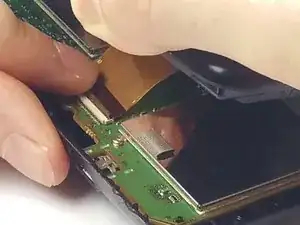

    • Find and lift the small grey hinge at the end of the ribbon cable.

    • When handling the motherboard, make sure to wear an anti-static wrist strap.

Conclusion

To reassemble your device, follow these instructions in reverse order.
