Garmin Nüvi 205W LCD Display Replacement

Written By: oldturkey03
  • Comments: 2
Garmin Nüvi 205W LCD Display Replacement

Difficulty

Moderate

Steps

6

Time Required

30 - 45 minutes

Introduction

This Garmin had a cracked front glass/digitizer. Due to cost effectiveness I replaced the complete front panel. Replacement cost $20.

  1. qR1SkUmdbVSTsHDX
    qR1SkUmdbVSTsHDX
    5VdXhvPAZrY2ZrVC
    nFLSrFHLItyKEOts

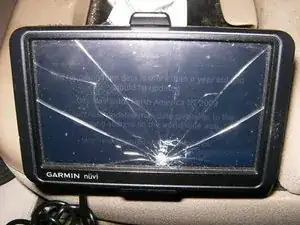

    • The cracked screen is clearly visible. LCD is still functioning, but obviously no touch function.

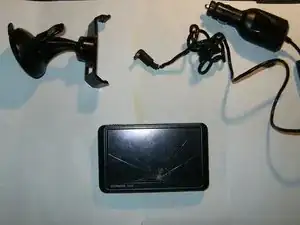

    • Remove the holder as well as the power cord from the back of the GPS unit.

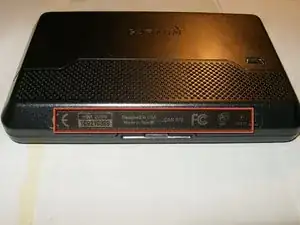

    • The Nüvi uses two screws that are hidden underneath the label on the bottom.

  2. 6DyHabFeWeBdLA6l
    6DyHabFeWeBdLA6l
    MkUUkoFNstCQfNbe
    uvBFkUEsUt1Lmfo5

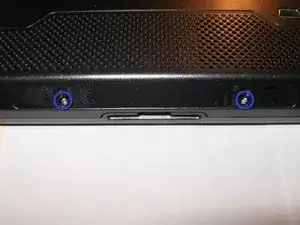

    • Remove the label, then remove the two Torx T5 screws

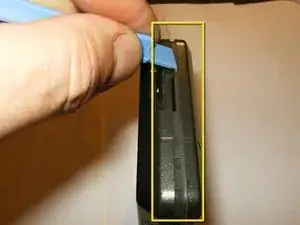

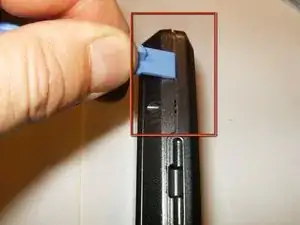

    • Use a plastic opening tool to start splitting the front and back case.

    • Work your way around the separation line, gently applying continous pressure to the back case.

  3. UMbNVTG13tY4uDOP
    UMbNVTG13tY4uDOP
    lXltHqNUNsdQyiiD
    X3jRe4FH61sHtUuM

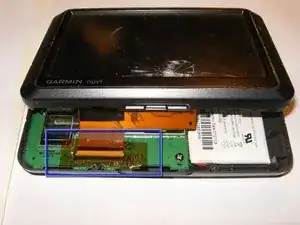

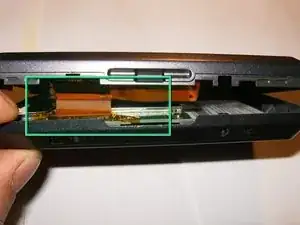

    • Once the front and back case are split, do not yet totally remove it. The LCD is still attached via a ribbon cable.

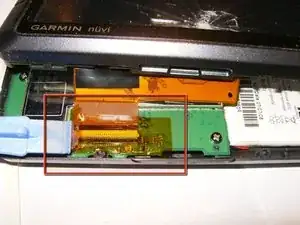

    • The ribbon cable and connector are covered with a strip of Kapton tape

    • Remove the tape. Use the plastic opening tool, or any other appropriate tool (i.e. guitar pick, fingernails etc), to remove the tape.

  4. hZK5yk5fMX3sIGLr
    hZK5yk5fMX3sIGLr
    AIwJ3mPkbSpF21BX
    jhUeGxUTpLSvnbfd

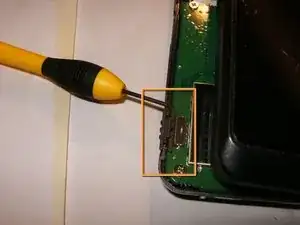

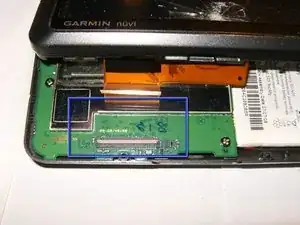

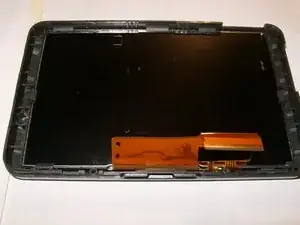

    • Once the tape is removed, flip the white clasp open, by moving it away from the cable end, disconnect the LCD.

    • Remove the On/Off switch

    • Remove the complete front assembly.

  5. j5pWUXAhY6wEqyax
    j5pWUXAhY6wEqyax
    iRcbDIAIoQKaY4Jv
    DyenLZulAtxG3GKq

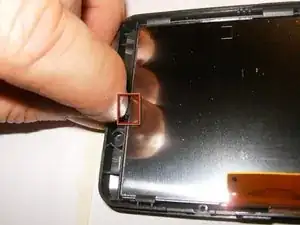

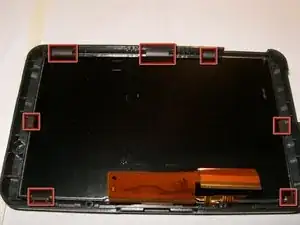

    • The LCD assembly is held in the front bezel by seven plastic tabs.

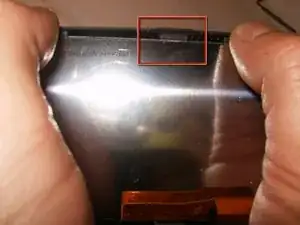

    • Move those tabs slightly back while applying pressure from the opposite side (front of the LCD)

    • Continue to push the tabs on the bezel away from the LCD assembly, pushing the LCD away from the bezel

  6. MQnOIdNfcu3wiLMf
    MQnOIdNfcu3wiLMf
    ysT4PShNflbAbZID
    MNDUHhGblGhsfS55

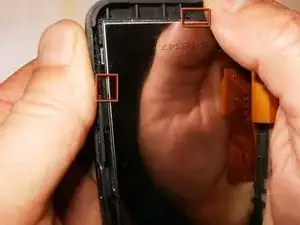

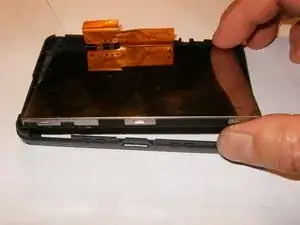

    • Ensure that the LCD assembly clears all the tabs.

    • Remove the LCD from the front bezel

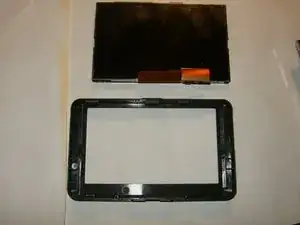

    • Totally separate the assembly from the bezel. Now it is time to replace it with a new assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
