Garmin Nuvi 2595LMT LCD Screen Replacement

Written By: Taylor DeWitt
  • Comments: 3
Garmin Nuvi 2595LMT LCD Screen Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

Use this guide to replace the LCD Screen of your Garmin Nuvi 2595LMT GPS.

  1. anGihCiCDUlealBK

    • Place the device on the workspace so the screen is facing downward.

  2. 2eHiBZ2NxX2DxN6j
    2eHiBZ2NxX2DxN6j
    ZLXRSqGhMAQY4PMx

    • Using the t5 screwdriver from the iFixit Pro Tool Kit, remove all four 5.6mm screws placing them safely on the table.

  3. dfKNTN1kbtV3vbPG
    dfKNTN1kbtV3vbPG
    BHAwosEGScV3VmBK
    xbgSE1bF5AunavuH

    • Grab a spudger from tool kit.

    • Pry open sides of Nuvi gently with spudger (do not rip apart).

    • Use plastic opening tool to pry ribbon slowly from white plastic bar.

    • Separate the two pieces and place them on the table

  4. 53AxjVwi5EnlFDeZ
    53AxjVwi5EnlFDeZ
    CJ5IMU2oBq2DgC2B

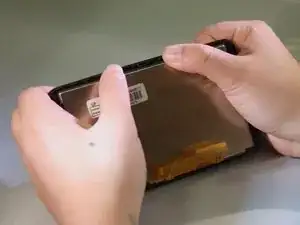

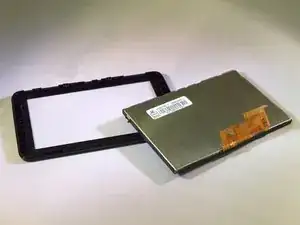

    • Grabbing the top half of the Nuvi, remove the screen from the tabs holding it in place using thumbs.

    • Place screen on table.

  5. KtKwBGMCvVlKEFNx
    KtKwBGMCvVlKEFNx
    KyMN6ZieWGgSSACX

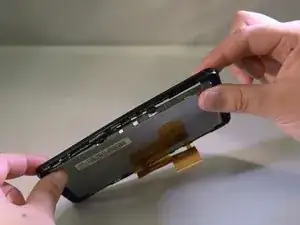

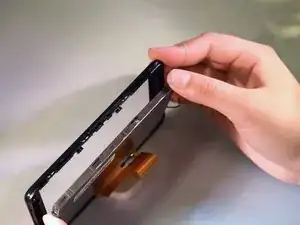

    • Place new screen in proper position, with the ribbon facing downward.

Conclusion

To reassemble your device, follow these instructions in reverse order.
