Garmin Nuvi 42LM Battery Replacement

Written By: Charlene Gray
  • Comments: 1
Garmin Nuvi 42LM Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

15 minutes

Introduction

Before replacing the battery, visit this device's troubleshooting page to determine whether you need to replace the battery. Follow the steps in this guide if you need to replace the battery.

  1. sxnUNBmkvZ3PxNN2
    sxnUNBmkvZ3PxNN2
    2wSq4LgIW115For1
    JODBiYhKncYoAITa

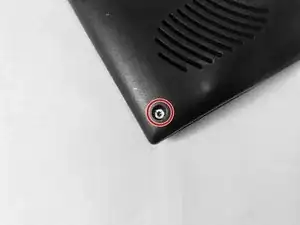

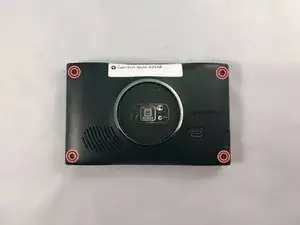

    • Remove the four screws on the back of the GPS using the T5 Torx screwdriver.

  2. lBabSnfgrdGYlmuN
    lBabSnfgrdGYlmuN
    yD4UmmRwMj1FITxh
    yKolTRT3yCqYIHWu

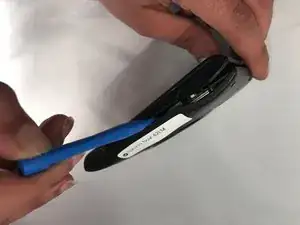

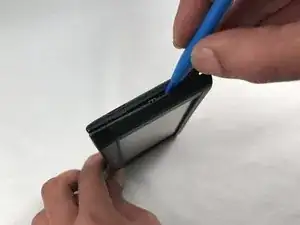

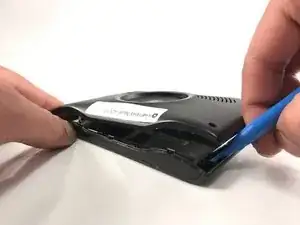

    • Pry the GPS open using a plastic opening tool.

    • When prying open the device, use caution to avoid damaging the motherboard.

  3. WhulHQghuDBGXgKE
    WhulHQghuDBGXgKE
    2BksVjcUx1pOIJoW
    PVARyrmgrltI2ACS

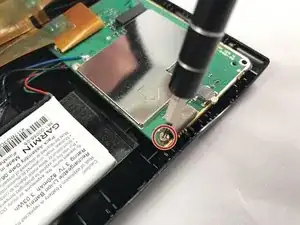

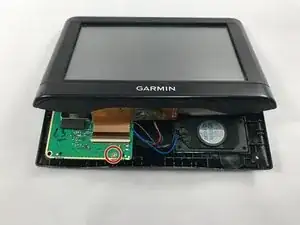

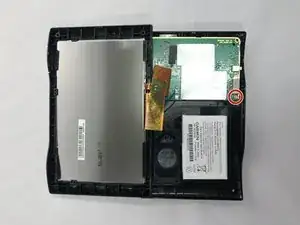

    • Using the T5 Torx screwdriver, remove the two screws located on the motherboard.

    • There are two screws - one in the back and one in the front.

  4. 2XsrDmXICs2rQkhl

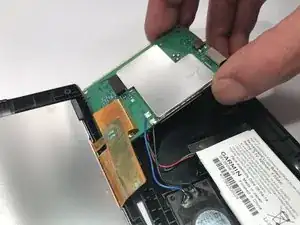

    • Move the motherboard from from its designated location on the GPS.

    • Do not pull on red, green, and black cables when repositioning the motherboard.

  5. vJKZYwEsEZtj1q4I
    vJKZYwEsEZtj1q4I
    s6L3Z5jAIgfKnYVu

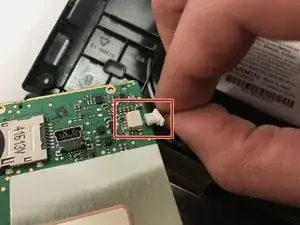

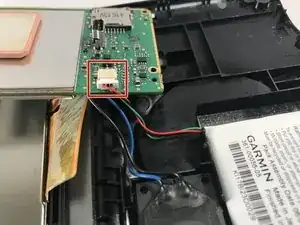

    • Gently unplug the red, green, and black bundled cable to remove the battery.

  6. PdIWYKijIguIZC6h
    PdIWYKijIguIZC6h
    6pM5tMMT2caTTgdM

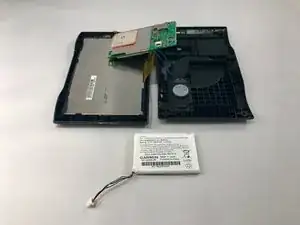

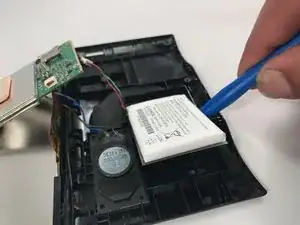

    • Use blue plastic opening tool to carefully pry the battery from the GPS.

    • You might need to use additional force when prying because there is adhesive glue on the back of the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
