Garmin Nuvi 56LMT Display Screen Replacement

Written By: Dustin Saxon
  • Comments: 0
Garmin Nuvi 56LMT Display Screen Replacement

Difficulty

Easy

Steps

5

Time Required

10 - 25 minutes

Introduction

This guide will show you how to replace the display screen on your Garmin Nuvi 56lmt.

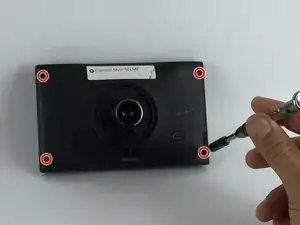

  1. f1LqsMsBtjRxGI5X

    • Power down the device before proceeding.

    • Locate the four 11.0 mm Torx screws and remove them with the T5 Torx screwdriver.

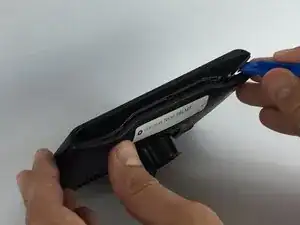

  2. WCWPPvVIwma4iWDL

    • Find the crevice where the front and back of the device meet.

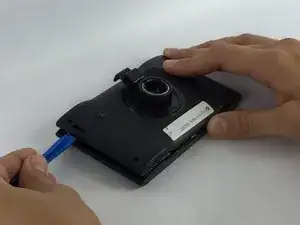

  3. NYF4Po2faKHeEMef

    • Run the plastic opening tool around the border of the device until it can be easily pried open by hand.

    • Be careful to not damage the ribbon cable by completely pulling the back from the front.

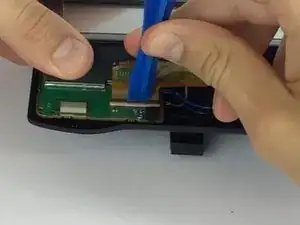

  4. t2uNwVINaZs3JSRL

    • Carefully use the spudger to flip open the ZIF connector.

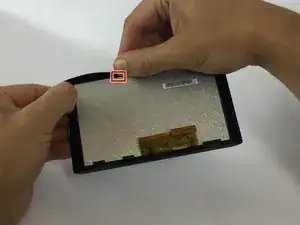

  5. 4WjJhIJVb4OCYaLQ
    4WjJhIJVb4OCYaLQ

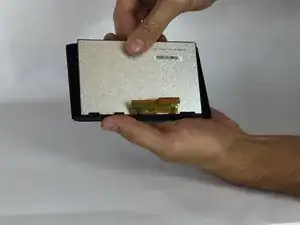

    BkwvHtyZi2sLHYA1

    • With your fingers hold back each of the clips located around the border of the screens back.

    • Pull screen up and slide out in the opposite direction of the ribbon to avoid snapping the fixed clips.

Conclusion

To reassemble your device, follow these instructions in reverse order.
