Introduction

This step-by-step guide illustrates how to replace the CD drive on the Gateway MD2614u.

  1. hE6pfwYLgPSxZJ5T
    • Locate the circled screw.

    • Carefully unscrew, making sure not to strip out the screw.

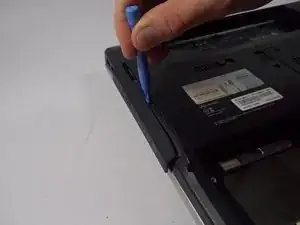

  2. ZMZlfWrFw4bKovcp
    • Use any tool with a flat edge in order to pry out the CD-Drive, preferably a plastic opening tool.

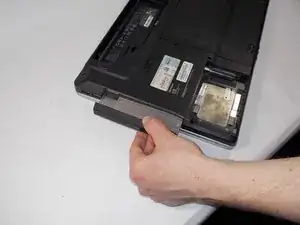

  3. YppsDC3Gfem16Cq1
    • Once the CD drive has been pried out enough, you can pull it out without damaging the other components.

Conclusion

To reassemble your device, follow these instructions in reverse order.
