Introduction

  1. NGScbrcjBkOoVUeO
    NGScbrcjBkOoVUeO
    d3cxnAJVaEtLKQeL

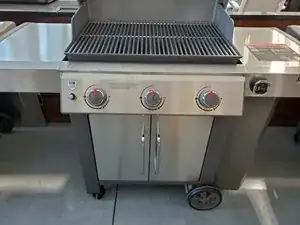

    • Be sure the grill is turned off before beginning this guide.

    • Remove all of the control knobs.

    • The amount of knobs may vary depending on the grill.

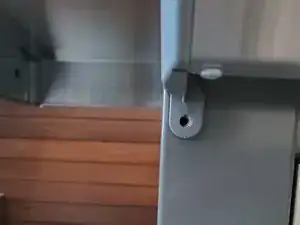

  2. muLULL51iKspXOM1
    muLULL51iKspXOM1
    SvJXWxdAaILwnVyO

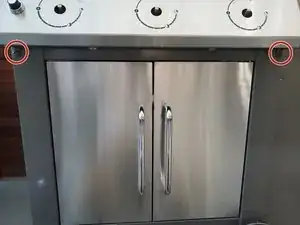

    • Remove the two 19 mm screws below the control knob panel using a Phillips #3 screwdriver.

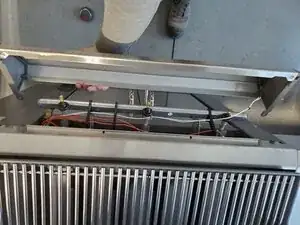

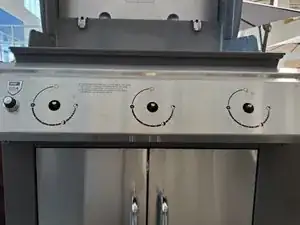

  3. S1rrXcvXanooY46Q
    S1rrXcvXanooY46Q
    LTDUqvHcqmG6hZWZ
    • Push up on the front panel, and pull it up above the grill.

    • Potential for device damage: The ignitor is connected to the front panel, so do not pull too hard.

  4. ghVLXPO4RvASPYEq
    ghVLXPO4RvASPYEq
    qACa2GYuDdHNCUQP

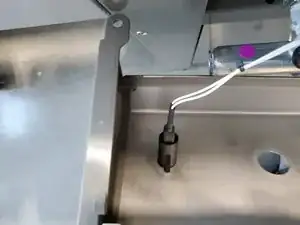

    • Disconnect the cables from the ignitor.

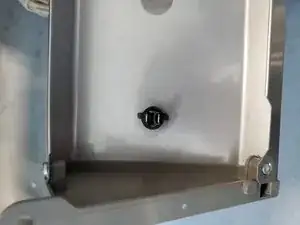

  5. F1MUSeOFPg1fS1lO
    • Pinch the two ends of the ignitor and remove the ignitor from the front panel.

  6. DOap56hRBWZc2nyN

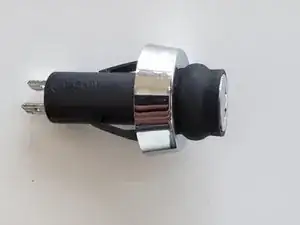

    • Have the new ignitor on hand, and make sure that the clips on the side are in good condition.

    • Ensure that the pins at the end are straight and not bent.

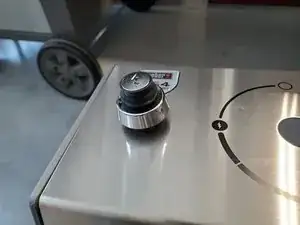

  7. fYLJSGLyN5FH6Snd
    fYLJSGLyN5FH6Snd
    qbHyXXDpoUVTPNcr
    AoXW5VIfxKKdeW3l

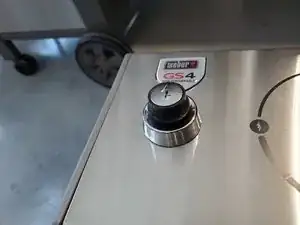

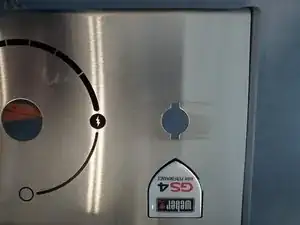

    • Put the new ignitor into the socket.

    • Press down evenly until it is secure.

  8. BGEIZeFZjpFhttMs
    • Connect the white cables to the ignitor.

  9. rTckUeCwCtZuJlvO
    rTckUeCwCtZuJlvO
    XbQ3bPZvFDZETJsO

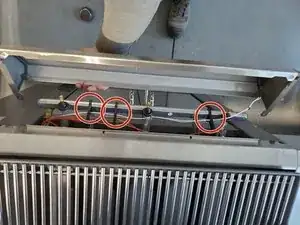

    • Make sure any and all cables are separated from the fire box (the bottom of the grill).

    • Slot the panel back on the grill and then push downward.

    • The fire box is the part of the grill that gets really hot, and this can damage the cables.

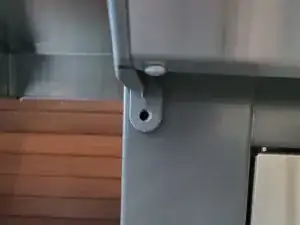

  10. ucvWmeeylrMZ2RqC
    • Make sure the holes match and reinsert the screws from Step 2 using a Phillips #3 screwdriver.

    • If the holes do not match up, you may have to gently push or pull the front plastic panel.

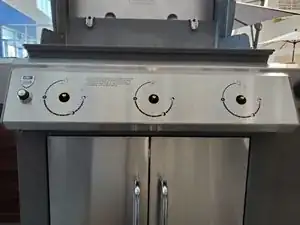

  11. tbQWPkYVt6ecOTHi
    tbQWPkYVt6ecOTHi
    j6dFeQSLafXvDiUD

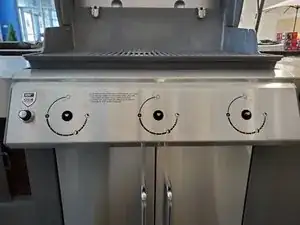

    • Add the control knobs, and slot them into place.
