Introduction

If you find yourself in the possession of a Gigabyte AERO 15-X8 laptop for a prolonged amount of time, you might want to replace the thermal paste and pads that lose their efficiency with time.

Thermal paste serves as a heat transfer medium that draws heat produced by the processor and graphics card away, so they can maintain their operating frequency and not throttle due to high temperature. You can usually diagnose if excessive heat is a problem by starting a resource-heavy task in conjunction with a temperature display, looking for a drop in performance once the temperature reaches the high 80`s Celsius. Replacing the thermal paste might help in reducing the maximum temperature as well as prolonging the amount of time the laptop can efficiently operate under a heavy load.

The replacement will likely improve the user experience, increase the performance, and prolong the service life of your laptop. It is generally recommended to replace the thermal paste on your laptop once a year for optimal performance and longevity.

Before starting on this guide, make sure to turn off and disconnect the laptop from the power source. Also, if you do not have experience in computer maintenance, familiarize yourself with How to Apply Thermal Paste guide.

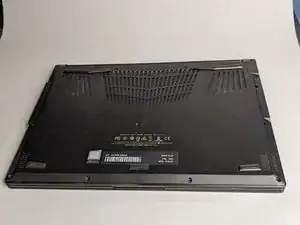

  1. Du1nOIUt6j3nAN1T
    Du1nOIUt6j3nAN1T
    dVRml2ZZGorsGUTC
    Wv5lP4nvBHDPXXn2

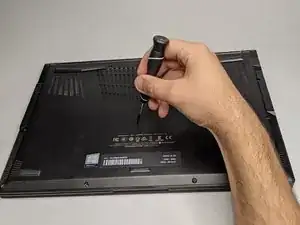

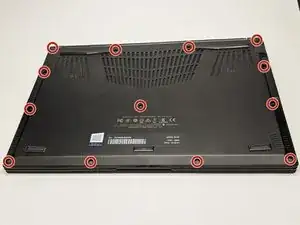

    • Using a T6 Torx screwdriver, remove the thirteen 10mm T6 Torx backplate screws.

    • Apply gentle pressure when removing the screws to preserve the condition of screw heads for future repairs or servicing.

  2. qEPltOglpRhR1iDH
    qEPltOglpRhR1iDH
    eNp3lZVdFdbyp3vl
    wtAqRV1oE4rYJXNO

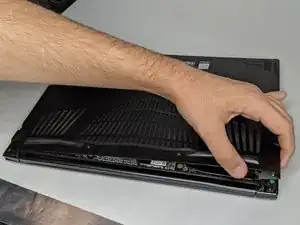

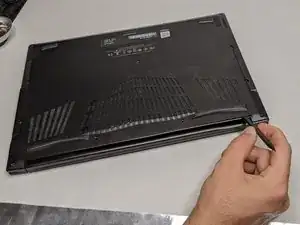

    • After the screws are removed, carefully insert a plastic spudger in the space between the backplate and the rim of the laptop.

    • Apply moderate pressure upwards to disconnect the clips that hold the backplate in place.

    • The sharp popping sound that the latches on the inside will produce is normal and does not signify anything being broken.

    • While some force will be required in this step, make sure not to over-apply pressure since extra force might break the metal latches.

    • Lift the backplate away from the laptop.

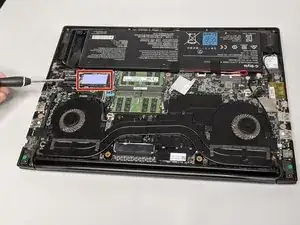

    • Remove the thermal pad that covers the SSD.

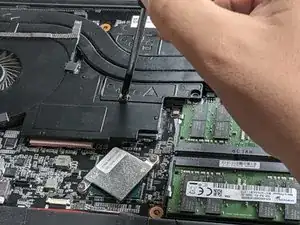

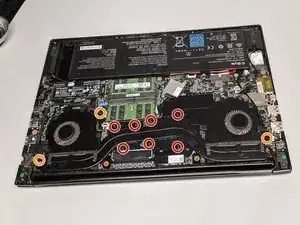

  3. 1Ld3uxrh6ATQDCmW
    1Ld3uxrh6ATQDCmW
    ueETBaDXVFcLgsLw
    • Using a Phillips #2 screwdriver, remove the screws that hold the fan assembly in place.

    • Seven 5.5mm Phillips #2 screws securing the center area are spring-loaded and require moderate pressure on the screwdriver to initiate the removal.

    • Three 7.5mm Phillips #2 screws.

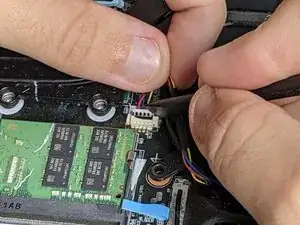

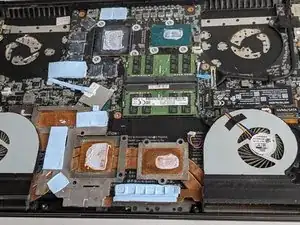

  4. 1AwFy6WVNdh5SrWw
    1AwFy6WVNdh5SrWw
    ydiGNJrgdZpTCduF
    OjicVMFYpaqgRXAo

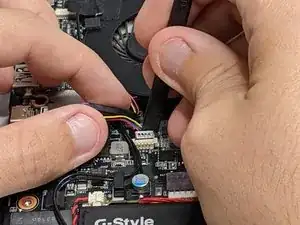

    • Disconnect the fan wires by pulling on the connector while pushing on its sides with the spudger.

    • These connectors are extremely fragile. Make sure to not use any metal tools during this and the following steps.

    • You can leave the wires plugged in since their length allows the removal of the fan assembly while connected. This step just makes the process of further steps more manageable.

    • Lift the fan assembly and place it on the battery, bottom-up.

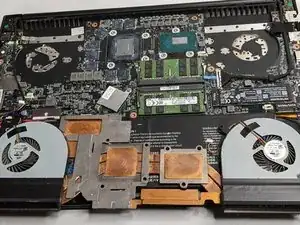

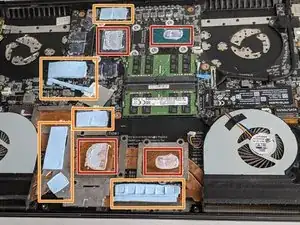

  5. nYUTOjbyoOLSOQ5D
    nYUTOjbyoOLSOQ5D
    3dr3O23iOQnmYaMu
    WNYahpiXccoUXlUp

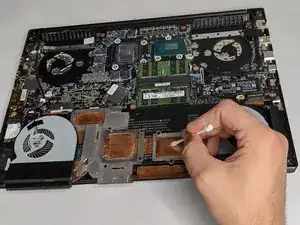

    • Use a lint-free cloth to remove the thermal paste from both the CPU and GPU chips.

    • Use of a Q-tip soaked in isopropyl alcohol can assist in removing the paste from hard to reach spaces.

    • Remove the old thermal pads from the power supply chips.

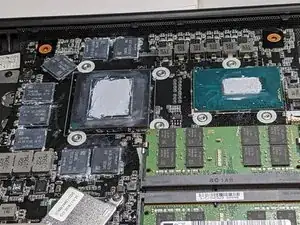

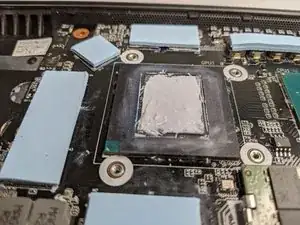

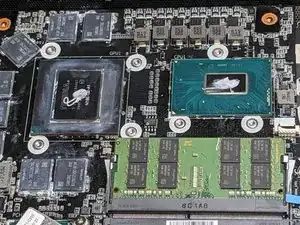

  6. jOhven5yorqGMmcW
    jOhven5yorqGMmcW
    AJMkQGlEEnYZLvgF
    SqFTcCIAaiKNxqFk
    • Degrease the surface of CPU and GPU chips using the isopropyl alcohol and Q tips.

    • Place a small amount of thermal paste on both CPU and GPU chips.

    • Use a spreader to thinly spread the paste on the entire area of each chip.

    • Consult the How to Apply Thermal Paste guide for additional instructions if necessary.

  7. plxMsmLtGBDCQvhN
    plxMsmLtGBDCQvhN
    M5G6lSSetLERgdhs

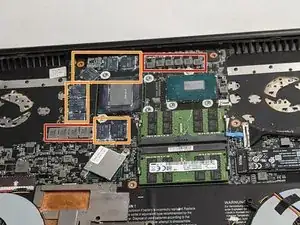

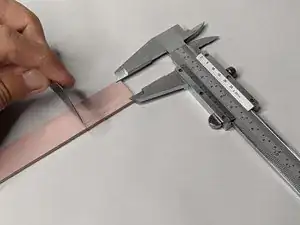

    • Using calipers or a precision ruler, measure the dimensions of all the power supply chips.

    • Cut the thermal pad sheet according to the measurements and place the pieces on top of the chips.

    • Use 1-1.5 mm thermal pad thickness on grey chips.

    • Use 2-2,5 mm thermal pad thickness on the 8 flat chips.

    • Try to check the thickness of the original pads. If 2-2,5 mm thermal pads are too thick, you may need to use thinner pads.

    Careful!!!

    I had to switch the 2mm thermal pads for 1mm ones on all chips. Using 2mm ones caused the GPU to overheat, likely because they are too thick and might create a gap between heatsink and GPU. Try to check the thickness of the stock thermal pads and observe the amount of force needed to screw the heatsink back on. Using 2mm thermal pads, I had a bit of trouble getting two screws back in. Using 1mm everywhere made it comparable to when I unscrewed it the first time with the stock thermal pads.

    Dominik Klooz -

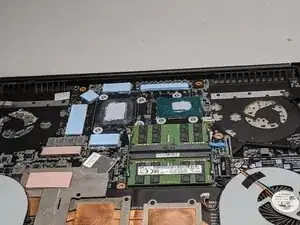

  8. yBTfvNOP5Lqrqk12
    yBTfvNOP5Lqrqk12
    yFOraQjiXneXXIjn
    • After the paste and pads have been applied, make sure that every chip is covered in accordance with the illustration.

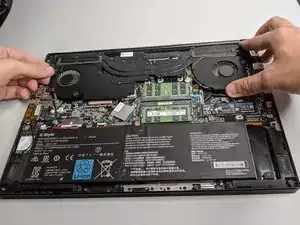

    • Carefully pick up the fan assembly and place it back, aligning the position with screw holes.

  9. CxYflPVp4Hge1HoP
    CxYflPVp4Hge1HoP
    v53SaSfTYIQIBHqH
    jvBXOa2tdswnFgqm

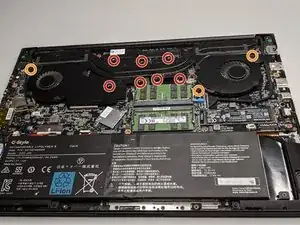

    • Using a Phillips #2 screwdriver, secure the fan assembly in place.

    • The seven 5.5mm Phillips #2 screws are spring-loaded and require moderate pressure to screw in.

    • Three 7.5mm Phillips #2 screws.

    • Make sure to alternate between sides while securing the fan assembly. Securing all screws in one area before going to the opposite one may lead to an uneven pressure during assembly that may displace the thermal paste.

    • Reconnect the fan wires by clicking them into the receptors.

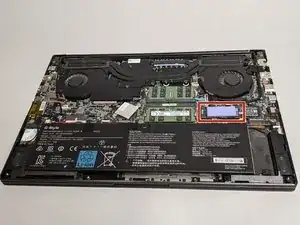

  10. EQQ6vSF3nih3GQsZ
    • Place the SSD thermal pad back.

    • Unlike the pads on the power supply chips, this pad does not experience much heat and does not need to be replaced as often.

Conclusion

Follow steps 2 and 1 in reverse order to finish the reassembly process.

Jack Freeman

Member since: 25/08/20

276 Reputation

5 comments

and guides for the gigabyte aero 17 yb laptop….and repair guides or guides to do a repaste ….

nick b jones -

Beware!!!

I followed this guide and my GPU temperatures shot up dramatically. Opening the laptop back up, I noticed very visible indentations in the thicker (in my case 2mm) thermal pads. That and the fact that screwing the heatsink back on was noticeably harder after putting in the 2mm heat pads leads me to believe that they are in fact too thick, possibly creating a gap or at least insufficient contact between the heatsink and GPU. I replaced the 2mm ones with 1mm, thus using the same thickness on all components, and I’m back to normal temperatures.

TL;DR: be careful with the thicker (2-2.5mm) thermal pads, they made my GPU overheat. Using 1mm ones on all components worked perfectly. Try checking the stock thermal pads’ thickness

Dominik Klooz -

I made an edit to the relevant step of the guide, but it is unverified for now as I don’t have enough reputation.

Dominik Klooz -

Thanks for the input, I hope you found this guide helpful. The acceptable width depends on how soft/flexible the pads used are, so it varies slightly in each individual case. The manufacturer uses some kind of soft and foamy ones which are thick and very malleable, so its hard to match the exact thickness needed.

Jack Freeman -

I have this laptop and i changed the thermal pads wth cooper shims and now i get a little bit better performance, but it bothers me how bad are the fans. i need to lube them every 4 months (my laptop is on day and night) because they start to make noise and i already bought replacements with same thing.

Regarding the SSD thermal pad... i dont think is accurate to said that it doesn't experience so much heat. i hagve two Samsung 970 2TB SSDs and the main one it shuts out even to 70 degress, is no cool at all.

Leon Andres Rojas Martinez -
