Introduction
Use this guide to replace the charging port of your HP 14-dq0051dx laptop. If the device is not charging, or the charging port has been damaged, this replacement should fix it. To tell if the charging port is in bad shape, shine a light into it and look closely. If there is anything bent or warped, it probably needs to be replaced.
Before beginning this repair, turn off the laptop and disconnect from the AC adapter.
-
-
Turn the laptop upside down so the backside is facing up.
-
Use a Phillips #1 screwdriver to remove eight screws from the back case.
-
-
-
Turn the laptop over and open the screen.
-
Insert the opening tool into the seam between the bottom panel and the keyboard.
-
Run the opening tool along the entire seam to separate the bottom panel.
-
-
-
Once the bottom panel is separated from the laptop, carefully close the laptop and turn it upside down.
-
Place both your hands on opposite ends of the bottom panel, and lift up and remove the panel.
-
-
-
Use a Phillips #1 screwdriver to remove the four 2.5 mm screws that secure the battery.
-
Remove the battery from the laptop.
-
-
-

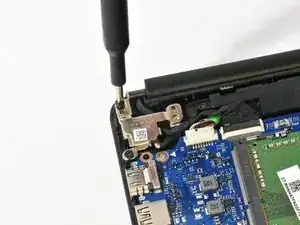

Use a Phillips #1 screwdriver to remove the two 4.5 mm screws from the left hinge.
-
Rotate the hinge up and out of the way.
-
-
-
Pull the charging port cable away from the connector in the same direction as the individual wires to unplug the charge port connector.
-
Remove the charging port.
-
To reassemble your device, follow these instructions in reverse order.
