HP 2000 - 2D22DX Keyboard Assembly Replacement

Written By: Conor Most

Comments: 9

HP 2000 - 2D22DX Keyboard Assembly Replacement

Difficulty

Moderate

Steps

Time Required

20 minutes - 1 hour

Introduction

Tools

Step 1

Flip the device over and locate the battery compartment.
Slide the battery release latch to the left until the battery is detached from its slot.
A distinguishable pop will be heard when the battery is fully released.

Step 2

Slowly pull the battery out of its slot, being careful not to damage any of the connectors in the process.

how long does that lithium battery next to the hard drive last.

do you ever have to replace it?

which item does it powers?

hope to here from you soon

Anthony Damons - 02/10/19

Step 3

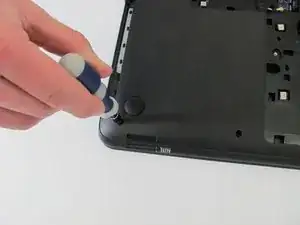

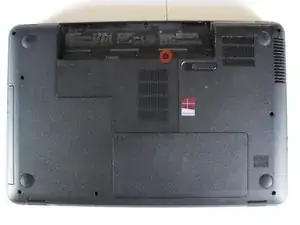

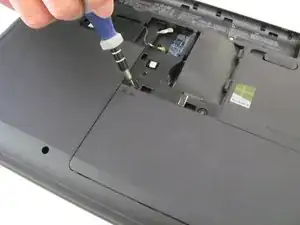

Loosen the Phillips #00 screw securing the RAM compartment cover.
The screw is permanently attached to the RAM compartment cover. Do not try to remove it completely.

Step 4

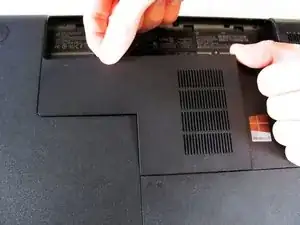

Once the screw is sufficiently loosened, slowly unclip the RAM compartment cover from its slots in the plastic chassis.
When unclipped completely, pull the compartment door out and away from the chassis.

Step 5

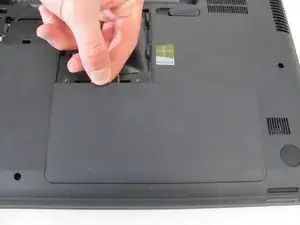

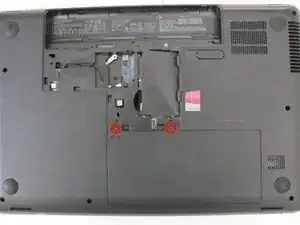

Loosen the two Phillips #00 screws that are securing the hard drive compartment.
The screws are permanently attached to the hard drive compartment cover. Do not try to remove them completely.
Once the screws are sufficiently loosened, disconnect the clips holding the cover in place and slowly pull the cover away from the plastic chassis.

Step 6

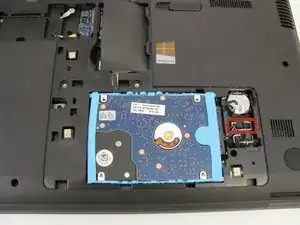

Using a spudger, disconnect the hard drive connecting cable. Use a slow, prying motion as if pulling a nail out of wood.
Be very gentle with the connecting cable and its respective port on the logic board. Both are very fragile and can be easily damaged.

Step 7

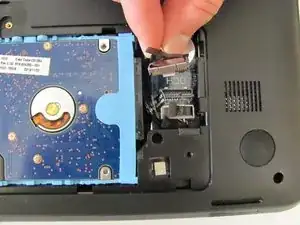

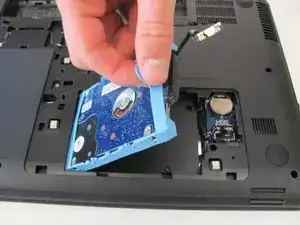

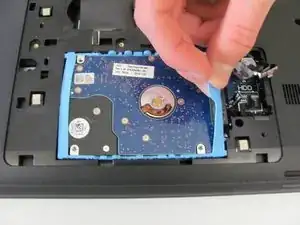

Using your fingers, grab the blue tab on the right side of the hard drive and slowly pull upwards.
Lift the hard drive out and away from its socket in the plastic chassis.

Step 8

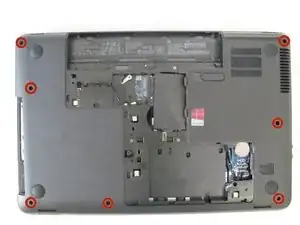

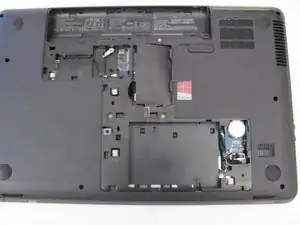

Locate all seven Phillips head screws around the borders of the plastic chassis.

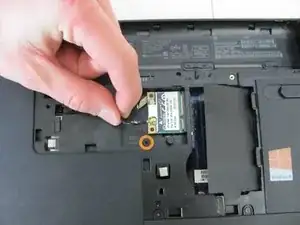

Locate the small Phillips head screw next to the wireless chip.
Using a #00 Phillips head screwdriver, remove all eight screws listed above.
These screws are known to get stuck on occasion. If this occurs, try using a slower unscrewing motion with a magnetic screwdriver. Then, utilize the magnetism of the screwdriver to simply pull the screw from its "well".

what is the point in removing these screws? They have nothing to do with the keyboard.

Also you missed a screw by the wifi card.

Basic Phreak - 02/02/17

The seven screws have nothing to do with the keyboard

hoserjoe - 10/03/17

These screws have no connection with the keyboard.

Sarath Chandran - 10/08/17

Step 9

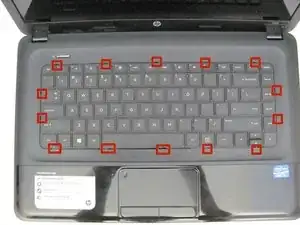

Locate the fourteen clips in the small gap that runs between the keyboard assembly and the chassis.

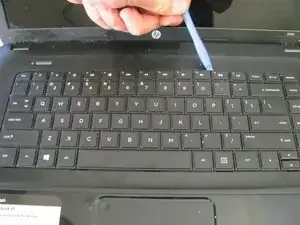

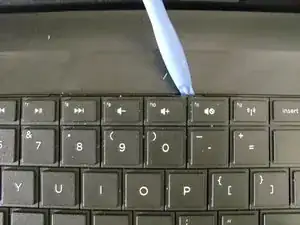

Using a plastic opening tool, slowly press down the keyboard clips and begin pulling the keyboard upwards.
This step requires a little bit of force. The clips are quite sturdy and can take a lot of pressure but the keyboard itself is still possible to bend or damage.

I've been struggling trying to pry the keyboard off of those clips, but all I can do is pull out individual keys.

Randy Hansen - 15/07/18

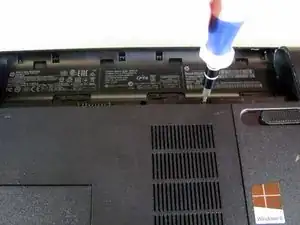

If you’re having trouble un-clipping the keyboard from above (like I was), the HP service manual suggests flipping the machine over, pushing a screwdriver into the keyboard screw hole, and pulling the three latches in the battery compartment until they click. Then, it’s pretty easy to get a spudger underneath the top edge of the keyboard and work it across that edge to undo the remaining clips.

Manual (keyboard removal on pg 59): http://h10032.www1.hp.com/ctg/Manual/c03...

nerdyphysicsguy - 30/08/20

Step 10

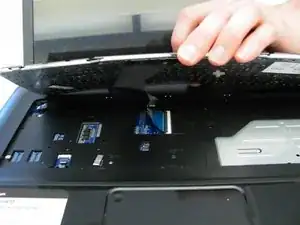

Do not try to remove the keyboard immediately. It is still connected to the motherboard by a ribbon cable that can be easily damaged.
Once the keyboard is unscrewed, the ribbon cable below will also need to be disconnected.

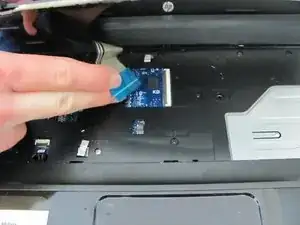

Lift up the "flap" securing the ribbon cable to their slot on logic board and slowly pull the cables away from their connections.

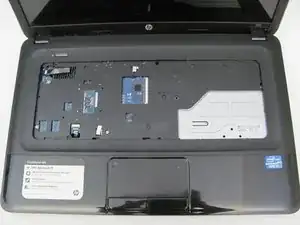

Lift the keyboard assembly up and away from the plastic chassis.

Conclusion

To reassemble your device, follow these instructions in reverse order.
