HP Chromebook 11 G3 SD Card Reader Module Replacement

Written By: Rahul Goyal

Comments: 1

HP Chromebook 11 G3 SD Card Reader Module Replacement

Difficulty

Easy

Steps

Time Required

5 minutes

Introduction

This guide walks through replacing a faulty SD card reader module. It requires removing the keyboard mount. Afterwards, it is relatively simple and requires only a Phillips head screwdriver and a spudger to finish removal.

Tools

Parts

HP Chromebook 11 G3/G4 SD Memory Card Reader

Step 1

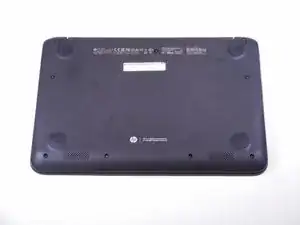

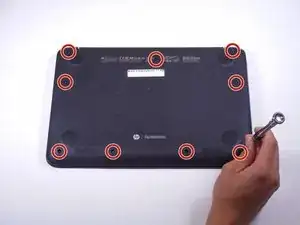

Flip the laptop upside down so that the lid lies flat on the table.
Remove the nine 6mm Phillips #00 screws that line the border.

Step 2

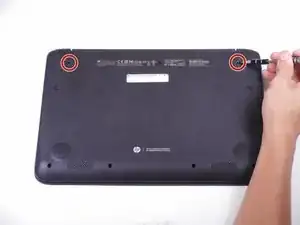

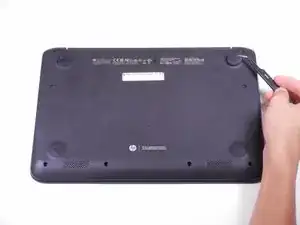

Remove the two rubber feet closest to the hinge using tweezers.
Remove the two 6mm Phillips #00 screws revealed under these rubber feet.
The rubber feet may tear while removal; preventing this can be difficult, but it won’t harm the laptop. If desired, replace these rubber feet during reassembly.

Step 3

Flip the laptop so it is in the upright position.
Open the lid.

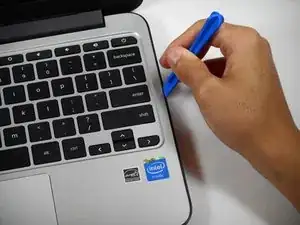

Unsnap the keyboard mount along the border of the laptop using a plastic opening tool.
This may require more force than expected. Hearing loud clicks as the plastic opening tool slides along the seam is normal.

Step 4

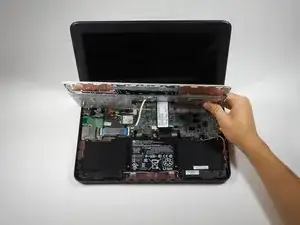

Tilt the keyboard mount up.

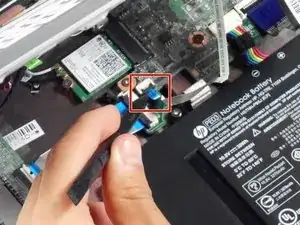

Use a spudger to flip up the two ZIF connector retaining flaps for the ribbon cables that connect the keyboard mount to the motherboard.
Gently remove both ribbon cables.

niceygvyjgiuhgiu

Lucas Oliveira Andrade - 27/02/20

Step 5

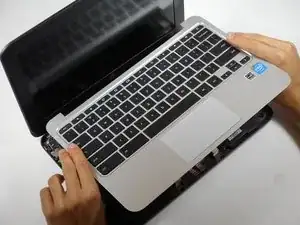

Lift the keyboard mount out of the laptop.

Step 6

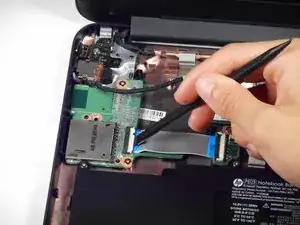

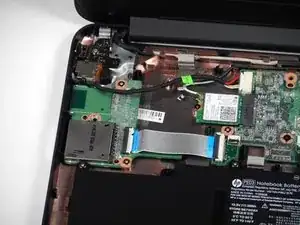

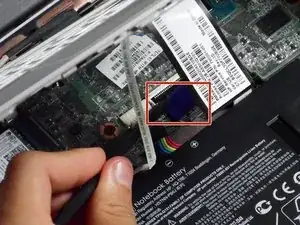

On the module, use a spudger to lift the small ZIF retaining flap for the ribbon cable connecting the SD card reader to the motherboard.

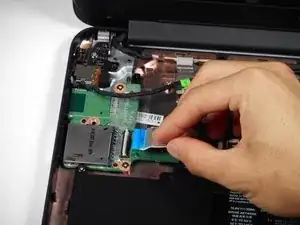

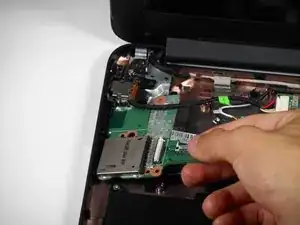

Gently pull the ribbon cable out of its socket.
