HP Envy 15-u001dx Wireless Network Card Replacement

Written By: Dakota Presley
  • Comments: 0
HP Envy 15-u001dx Wireless Network Card Replacement

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

  1. x6t1AgYW5FDhM6Jb

    • Remove the two no-slip covers on the rear, bottom side using spudger shown in top center of picture.

    • The two in the front do not have to be removed as there are no screws underneath them.

  2. KXgdUJC6ZQFRQc5V

    • Remove the two cover tabs towards center of the bottom as there are screws underneath them.

  3. jAl611S1JTgQAZwn

    • Remove all fourteen 4.5 mm screws from the bottom using a Phillips #0 screwdriver. Each location is marked by a red circle in the picture.

  4. NA4jMY2Vwxn5saPe

    • Separate the top cover by using a spudger to go around the sides freeing the inside latches.

    • Once the bottom is free, carefully open to the inside as there are two ribbons that connect your keyboard and touch pad to the top cover.

  5. G1BoRJKpyDMMLBkq
    G1BoRJKpyDMMLBkq
    dnYsBQQfxQt6glFK

    • Use the spudger to detach the two ribbons from their connectors.

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

  6. CBCepQuDoSotUSUc

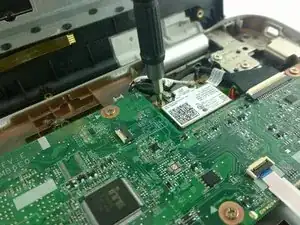

    • Remove the Phillips #0 4.5 mm screw from the wireless network card located in the back, right side of the interior.

  7. v1CNwfWw2IcfOVEk

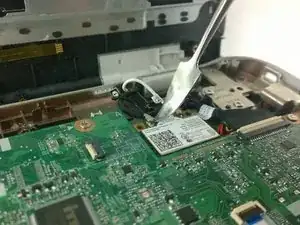

    • Use the spudger to remove the antenna connector attached to the black wire labeled "1".

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

  8. VLEbLXbTTBKKHrIL

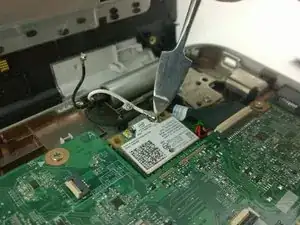

    • Detach the antenna connector for the white wire labeled "2".

  9. IgTw6Xt6VLYqOUjN

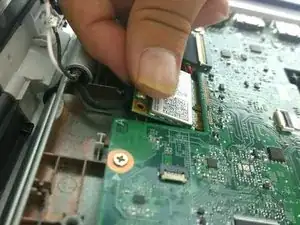

    • Gently remove the card from its slot by pulling.

Conclusion

To reassemble your device, follow these instructions in reverse order.
