HP Envy x360 13-y013cl Battery Replacement

Written By: Petersee
  • Comments: 0
HP Envy x360 13-y013cl Battery Replacement

Difficulty

Easy

Steps

5

Time Required

5 - 10 minutes

Introduction

If you are having trouble with the battery life of your device or if your device will not turn on, it may be time for a replacement battery. This guide will provide step-by-step instructions for how to remove the battery on an HP Envy x360 13-y013cl laptop. Be aware of any swelling in the battery as there may be an increased risk of combustion. Before starting the guide, ensure to power off the device, drain the battery to 0 percent, and disconnect the power source.

  1. F1JFqKsNZ5oIwR2m

    • Flip laptop upside down to expose the back panel.

  2. ibubOsIJq6fPZPyo
    ibubOsIJq6fPZPyo
    HrTEWTTsKZvTw5kq

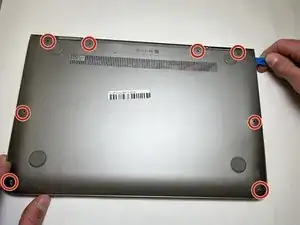

    • Remove all 7.84 mm screws (x8) using a T5 head screwdriver.

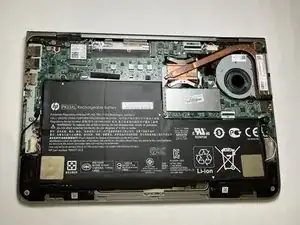

    • Use a plastic opening tool to remove the back panel.

  3. kRWDTX2GipRxmYA2
    kRWDTX2GipRxmYA2
    TWSEK4NXqgglrSIQ

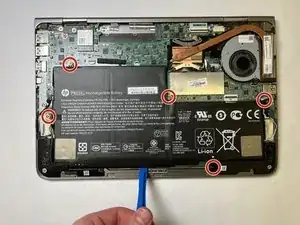

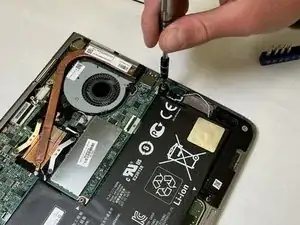

    • Use a JIS #0 screwdriver to remove the five 4.2 mm screws that secure the battery.

  4. ZM1dNKyyENMLmB5L

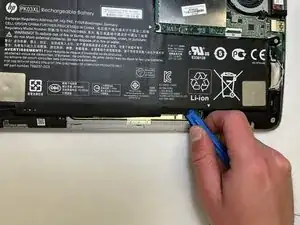

    • Use a plastic opening tool to remove the battery.

  5. jTLGHCmyQdtexb4n

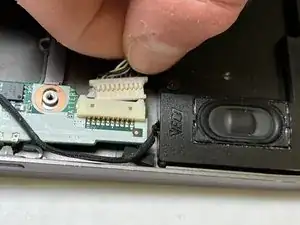

    • Detach the ivory plug (EH-JST connector) to disconnect the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
