HTC SMT 6175 Keyboard Replacement

Written By: Luke Plewa

Comments: 0

Difficulty

Moderate

Steps

Time Required

15 - 30 minutes

Introduction

Follow this guide if you need to replace the keyboard and navigation keys on your HTC SMT 6175 phone. The navigation keys are the hard, directional keys on the front of the phone. The qwerty keyboard are the soft keys on the front of the phone.

Before you begin the repair, be sure to power off your phone and unplug it from the charger.

Tools

Mako Driver Kit - 64 Precision Bits

Step 1

First, flip the phone over so that the back is facing upwards.

Step 2

Using both thumbs, push the back side of the phone's exterior up and remove the front face of the phone.

Step 3

Insert your finger or a pry tool into the slot above the battery. Remove it and set aside.

Step 4

To remove the back casing inside the phone, remove the six screws around the perimeter.

Step 5

Carefully pull off the back casing.
This step may be difficult. Start pulling the back out from the front shell. As it starts to lift up, move the phone side-to-side until the whole back is free.

Step 6

Remove the top screw.
Be CAREFUL, because the LCD screen is attached to the front side of the motherboard by a flexible ribbon cable.

Step 7

Pull the plastic keyboard away from the front case.

Step 8

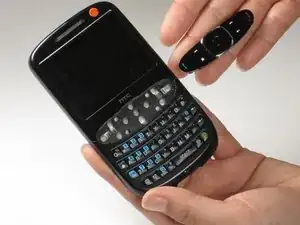

To remove the navigation keys on the front of the phone, remove the four screws securing the navigation keys using a Phillips screwdriver.
Remove the navigation keys from the front of the phone.
They should pop out as a unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
