Handspring Visor Deluxe PDA Motherboard and Memory card I/O Replacement

Written By: David Faltemier
  • Comments: 1
Handspring Visor Deluxe PDA Motherboard and Memory card I/O Replacement

Difficulty

Moderate

Steps

12

Time Required

10 - 15 minutes

Introduction

Use this guide to replace the Motherboard.

  1. TJxRe6ldVTS1kSYI
    TJxRe6ldVTS1kSYI
    VBRxIwnI43JWc4CW

    • Remove the outer screen cover by releasing the top clip from the main body of the device.

  2. 2bpCKv4e2baweE2K
    2bpCKv4e2baweE2K
    dpYDcMnFkf5mF3AL
    udJSCCO1P5J6GBXP

    • Pull out the stylus from the top right corner of the device.

  3. SVWrxL5rpn6uxjEF
    SVWrxL5rpn6uxjEF
    Z5fVS6YirWoVvSGH
    dpQn2FxZryQyeMXQ

    • Slide the memory cartridge cover up and off the device.

  4. MK5QTUFUTDU1dHVa
    MK5QTUFUTDU1dHVa
    kamdJsJwjuvJaplP

    • Remove the battery cover by releasing the clip from the main body of the device.

  5. MhfJgE1JaHVANRXE

    • Remove the batteries from the device.

  6. p4Onlg4GdSOGIpIK

    • Unscrew the four 2.94mm screws with a #00 Phillips screwdriver.

    • One end of the OEM stylus can unscrew and contains a mini #00 Phillips screwdriver.

  7. bNKepMrSPVVuoRYs
    bNKepMrSPVVuoRYs
    fMLPBXnefuHVSOKT
    SOKEUXcWp5QMsZmZ

    • Use the spudger to pry open the casing by applying pressure at 4 clips on both sides of the device.

    • Be careful while opening the casing as there is a flex strip connecting the two halves.

  8. 5FDJqCwj63DwiOda
    5FDJqCwj63DwiOda
    1Gwf4KgOEXL2HLX3
    TmxP2PWfKvMv3XRB

    • Disconnect the flex strip from the motherboard with tweezers.

    little piece came off from the screen connector, is this good?

    Keegan O'Laughlin -

  9. D33gSaiy3KvFexaQ

    • Use tweezers to remove the power button from the back case.

  10. TCEURksT62eEWgvP
    TCEURksT62eEWgvP
    jCKaHWkkLFPxVdTc
    J4nf2XmqMGqdFInT

    • Disconnect the button pad by using the spudger to pry it off the motherboard.

    • Remove the button pad.

  11. jc1iSiBFso1vkKDP
    jc1iSiBFso1vkKDP
    JGIuA6xIORb6iERN

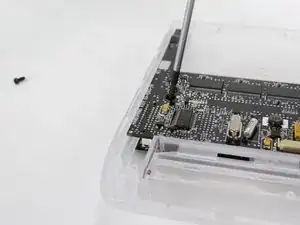

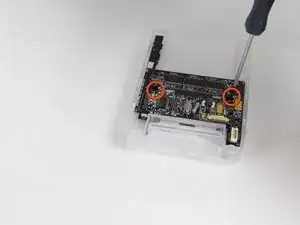

    • Unscrew the two 2.94mm Phillips #00 screws that hold the motherboard in place.

  12. GGG2hdDVPrM3wfwZ
    GGG2hdDVPrM3wfwZ
    ZoqYrKE4BqFVUMuq
    iqoD3QprRc1OQqkZ

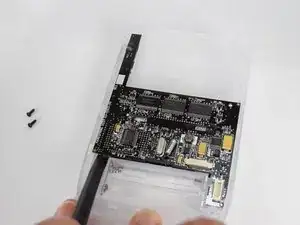

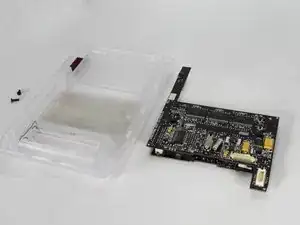

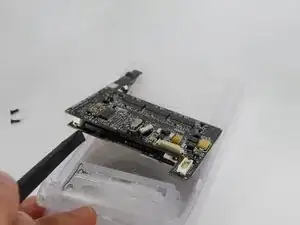

    • Use the spudger to lift the motherboard from the case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
