Introduction

If the cage on your hockey helmet has broken, use this guide to replace it.

The hockey cage provides head and face safety when playing hockey. It must conform to certain league rules if it is to be worn in a competitive game. Therefore, it is imperative that the cage is replaced properly if it happens to break.

It does not matter if you have the same helmet as in this guide, as all hockey helmets and hardware are universal across almost every brand.

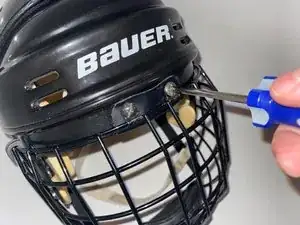

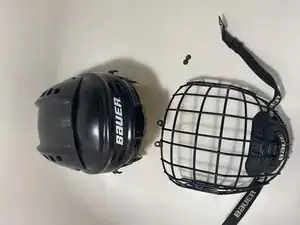

  1. 3EoG6jvlLOHekVTA
    3EoG6jvlLOHekVTA
    w1XtDt6TBHmLJY1S
    xXJtahrS1nhiGF3C

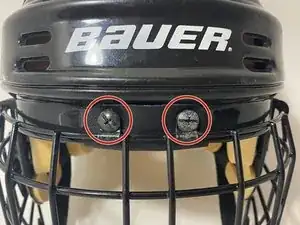

    • Unscrew the hinge clips from the front of the helmet.

    • This separates the old cage from the helmet.

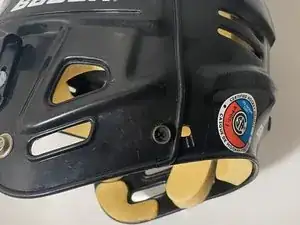

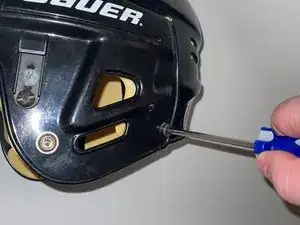

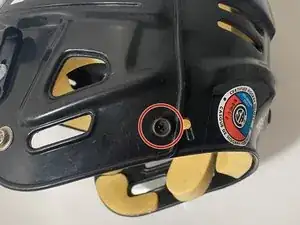

  2. RDfSAVfEWXBP4IwH
    RDfSAVfEWXBP4IwH
    WHGDapWEKc4nqpq4
    LrRB3DxViTLLLYPJ
    • Replace the screw clips on the sides of the helmet with the ones from the new cage.

    • Different companies have different sized clip screws so it is important to install the new ones that come with your cage.

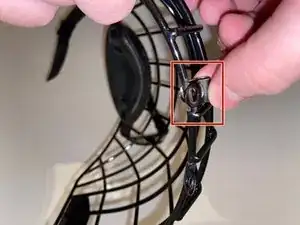

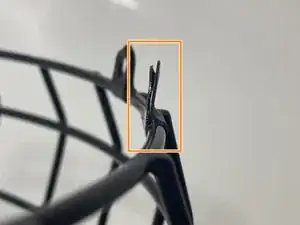

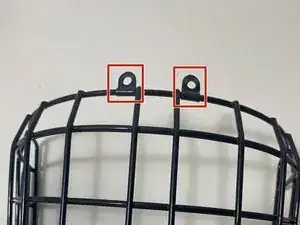

  3. oNShoVWDuQxyxwq6
    oNShoVWDuQxyxwq6
    1LKsgmnfMmvfOOys
    iI3UQmJMwVTqtTmj
    • Clip the new hinge clips onto the top center of the new cage.

    • Make sure the flat side of the hinge is facing towards the inside of the cage, and that it is pointed upward.

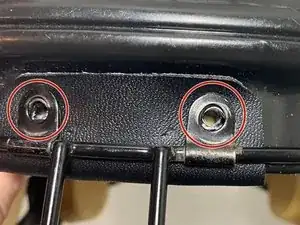

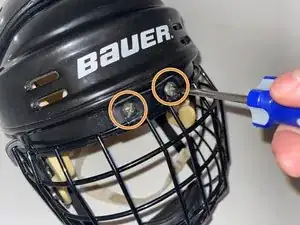

  4. xIIaKgCW6KJRSLmo
    xIIaKgCW6KJRSLmo
    cONwSBTEAKeNIiVx
    WCQBQnJjNYeABiGb

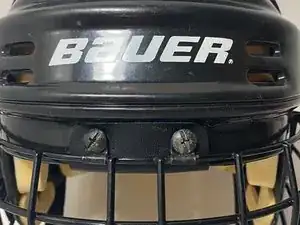

    • Align the hinge holes with the screw holes in the center of the helmet.

    • Once everything is lined up, screw the hinges into the holes in the helmet to attach the cage to the helmet.

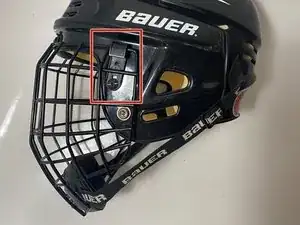

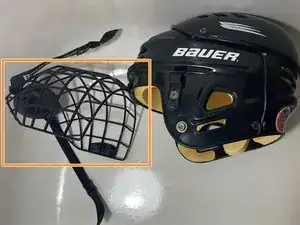

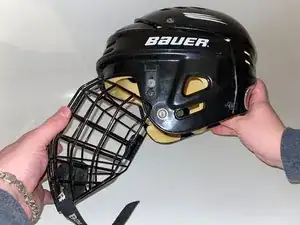

  5. uJF1IrbfPhQSGpZh
    uJF1IrbfPhQSGpZh
    eeHtTtnFdDyZYraE
    24tRXRkPwRXoAuiP
    • Make sure now that the cage is on that it has full range of motion.

    • It should fit under the J clips on the sides of the helmet when pushed up.

    • It should be able to extend 90 degrees outward.

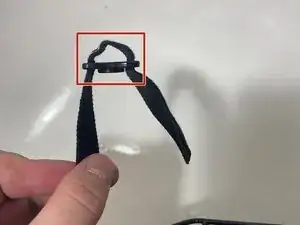

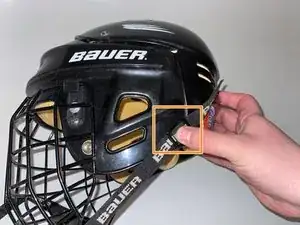

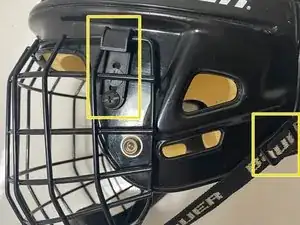

  6. CrTVZbXymQDjp2QA
    CrTVZbXymQDjp2QA
    wsJ22Gva2vLuYOqv
    DoBwEwJdZZDrWB2S
    • Now tighten the straps on either side of the cage.

    • Clip the straps into the screws on either side of the helmet to check how tight it is.

    • The straps should be tight to the screw clip, and the cage should be touching the j-clip.

    • Once you do this and you put the helmet on, if your chin is sitting perfectly in the chin guard, the helmet and cage will not move from their position if you shake or nod your head.

Conclusion

Make sure all of the screws are tight, and you have just completed the replacement of the hockey helmet cage!
