Honda 3000 Watt Inverter Generator EU3000IS1AWK Carburetor Replacement

Written By: Arthur Shi

Comments: 1

Honda 3000 Watt Inverter Generator EU3000IS1AWK Carburetor Replacement

Difficulty

Moderate

Steps

Time Required

10 - 35 minutes

Introduction

This guide shows how to remove and replace the carburetor for the Honda EU3000IS1AWK 3000 watt generator.

The guide lists all the gaskets encountered during the repair. You should replace any gasket that looks damaged or worn.

Tools

Parts

Step 1

Before you begin, make sure the generator is off and cool to the touch.
Use a large flathead screwdriver to unlock the maintenance cover.
Open the maintenance cover.

Step 2

Use a Phillips screwdriver to remove the screw securing the spark plug cover.
Remove the spark plug cover.

Step 3

Grab the plastic housing at the end of the spark plug wire.
Pull firmly to disconnect the wire from the spark plug.

Step 4

Turn the fuel valve to the cutoff position.

Step 5

Unlatch the four clips securing the air cleaner cover.
Remove the air cleaner cover.

Step 6

Remove the air cleaner filter from the housing.

Step 7

Pull and disconnect the breather tube from the top corner of the air cleaner housing.

Step 8

Pull and disconnect the lower tube from the bottom corner of the air cleaner housing.

Step 9

Use a 10 mm socket to remove the three fasteners securing the air cleaner housing:
Two 10 mm nuts
During reassembly, tighten these nuts to 6.3 ft-lb (8.5 N-m).
One 10 mm bolt

Step 10

Pull the housing out slightly from its recess.
The housing still has tubes clipped to it.

Step 11

Use a flathead screwdriver to pry and unclip the tube from the air cleaner housing.

Step 12

Remove the air cleaner housing.

Step 13

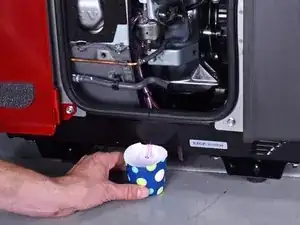

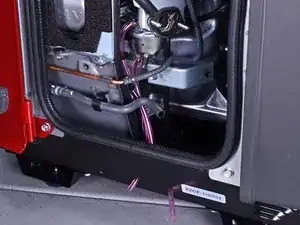

Place a container below the carburetor drain tube to catch the excess fuel.

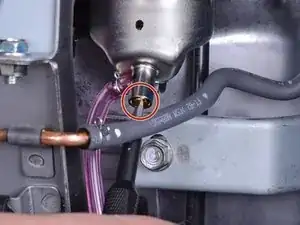

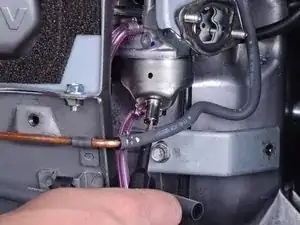

The carburetor drain screw is located at the bottom of the carburetor.
Use a flathead screwdriver to loosen the brass fuel drain screw until fuel begins to drain out of the carburetor.
Once you drain the fuel bowl, re-tighten the fuel drain screw.

Step 14

Be sure to replace any gaskets that are torn or worn out.

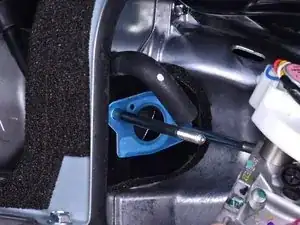

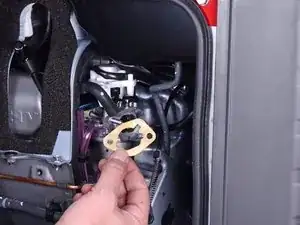

Remove the carburetor spacer gasket.
Replacement part: Honda Spacer, Carburetor 16220-ZE1-020

Step 15

Slide the choke stay off the carburetor mounting bolts and move it out of the way.
The choke stay will still be attached to the choke cable.

having trouble getting the choke stay back on the carburetor.

clyde Hudson -

Step 16

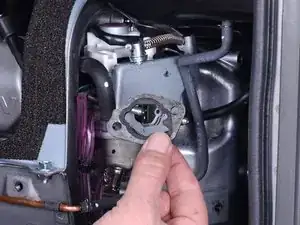

Remove the air cleaner gasket.
Replacement part: Honda Gasket, Air Cleaner 16269-ZE1-800

Step 17

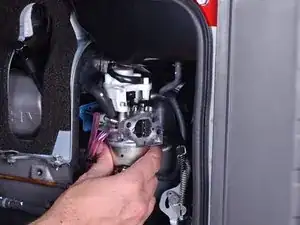

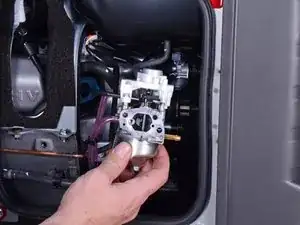

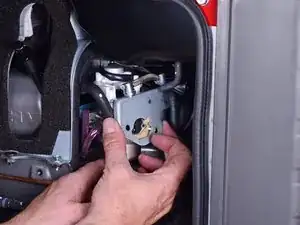

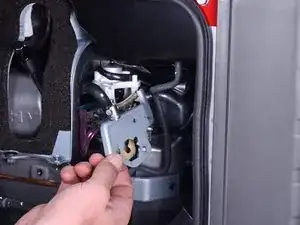

Slide the carburetor off the mounting bolts.
The carburetor is still attached to the generator with wires and hoses.

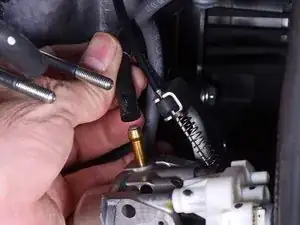

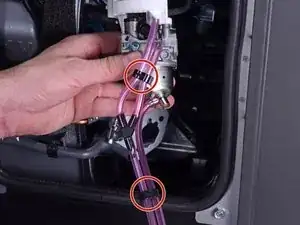

During reassembly, use the third photo as a reference for how to route the carburetor tubes.

Step 18

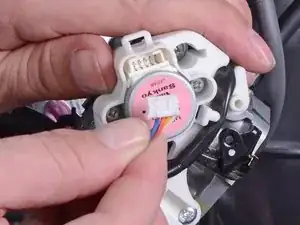

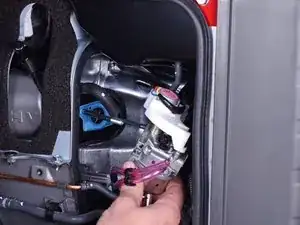

Disconnect the throttle control connector from the top of the carburetor.
Unwrap the throttle control wires from the carburetor.

Step 19

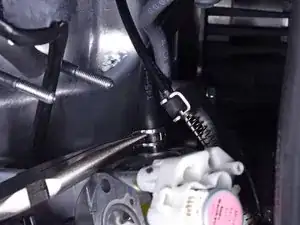

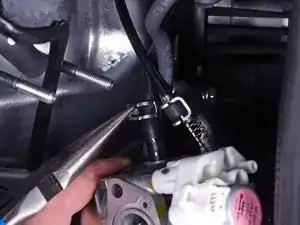

Use pliers to squeeze and loosen the hose clamp securing the carburetor fuel hose.
Pull and disconnect the fuel hose from the carburetor.
Fuel may leak out when you disconnect this hose. Be ready to catch any spillage.
