Introduction

LED roof cab lights are quite a customizable universal fit product, meaning that you're great for all kinds of trucks, SUVs, and RVs. You will need to check and see if your vehicle already has a set of roof cab lights. Otherwise, you need to drill a couple of holes so you can proceed with the wiring. This LED roof cab light set comes with 5 cab LED roof lights with 10 screws and 10 washers to complete your installation.

You can get these Truck Roof LED Cab Lights on Amazon for just 46.99 dollars a set.

  1. elSQj6ep5FdFkAkH
    elSQj6ep5FdFkAkH
    tPqiTWXhx16QX2Du
    LKHaRWkHcMdYu1xT

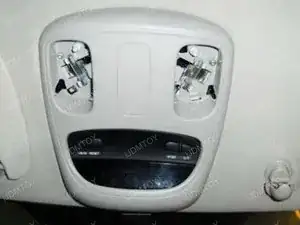

    • There are a couple ways you can power up this LED. You have the choice of adding a switch or just using the truck's interior light switch. For demonstration purposes, we are using the truck's interior lights to power up the entire assembly.

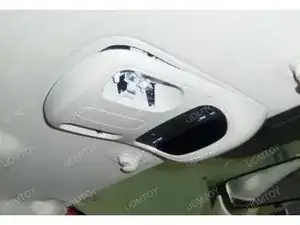

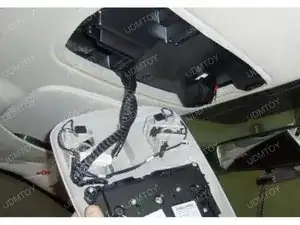

    • Expose the wires by removing the entire front map light assembly.

  2. m2BmGuF1enVfdilS
    m2BmGuF1enVfdilS
    LTOuPv5pphL1jyWB
    LISZyScpceNDUr2M

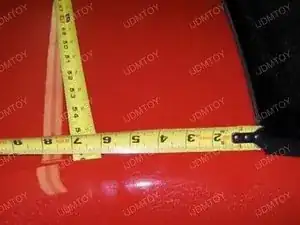

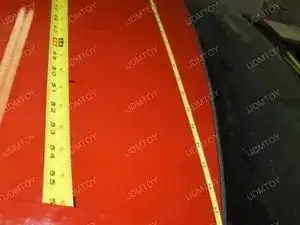

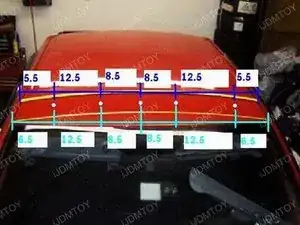

    • Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.

  3. JDlaiFTQY6BUnpKi

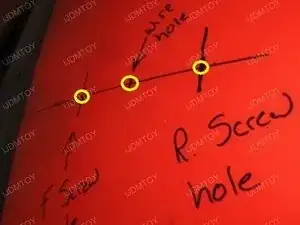

    • Get up to the roof of your truck to measure where you're going to install these LED cab roof lights. You can use a dry erase marker to mark all the points where you will be drilling into the roof.

  4. 5pNhGjaTAQhQFENg
    5pNhGjaTAQhQFENg
    Fbv3bIVBPw3VURIt

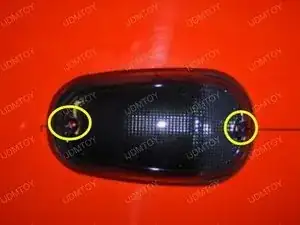

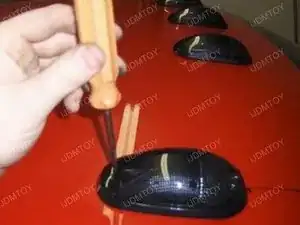

    • Use a screwdriver and attach the screws at the front and the rear of each LED roof lamp to permanently mount it.

  5. IgtRwuoDGOvSNSw6
    IgtRwuoDGOvSNSw6
    VVZEbKgCLSp4O1K2
    sahcnTnrZVTZvPRv

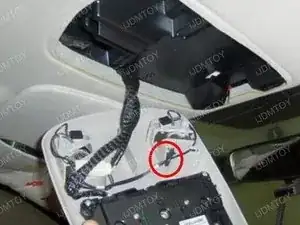

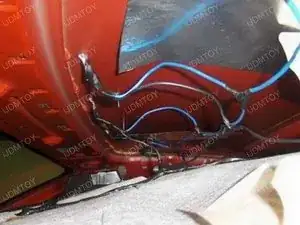

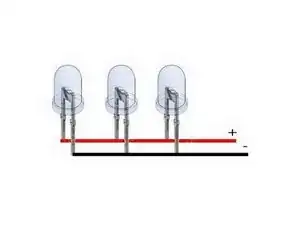

    • Wire up the LED lights in parallel. Use some electrical tape to secure the connections. Route the wires through the front map light assembly to complete the wiring portion.

  6. AZuNiVGRhOaVcLjM
    AZuNiVGRhOaVcLjM
    GHMQYnUxVjTJLKqJ

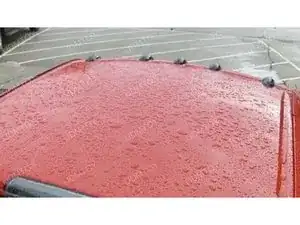

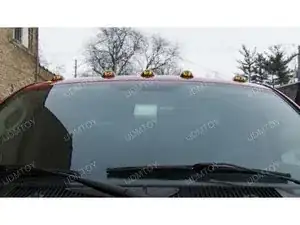

    • Test everything and enjoy your new LED cab roof light.

Eric Wu

Member since: 22/01/15

3267 Reputation

One comment

When you route the wires through the front map assembly, how exactly do you hook up the wires to the exposed map lights

Luke -
