How to Fix a Jammed Weiser SmartCode 10 Touchscreen Door Lock

Written By: Manpreet Sahota
  • Comments: 0
How to Fix a Jammed Weiser SmartCode 10 Touchscreen Door Lock

Difficulty

Easy

Steps

7

Time Required

5 - 10 minutes

Introduction

This guide will help you re-calibrate your Weiser SmartCode 10 Touchscreen Door Lock to prevent it from jamming. Calibration will help your smart lock re-learn your door and re-program itself. This will keep your lock functioning at its best and it will keep you from getting locked out of your house due to a jammed lock.

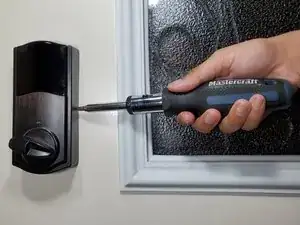

  1. md1Rpb3ZXYZb4DPB
    md1Rpb3ZXYZb4DPB
    WRLYSXLBxRbEWbEX

    • Make sure the lock is in the unlock position when you start.

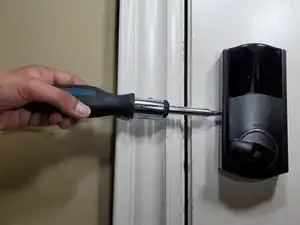

    • Use a Philips #1 screwdriver to remove the two 8 mm screws from the left and right sides of the lock.

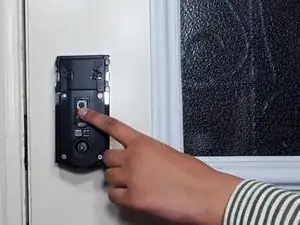

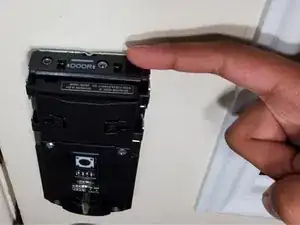

  2. PmJE2GRCZovFEWl2
    PmJE2GRCZovFEWl2
    Gy5PFdgVxfkLWXv3
    AMnSMMPFq41DGxia

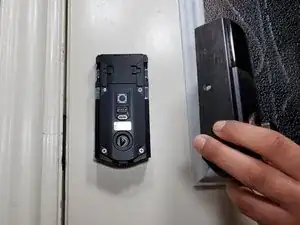

    • Lift the faceplate from the lock.

    • Locate the battery pack stationed at the top of the lock and the programming button at the center of the lock.

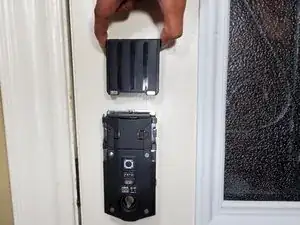

  3. VOQNhJWmvtF1FJsk

    • Pull the battery pack up and off to remove it from the lock housing.

  4. WW62nr42gh6BNd6k
    WW62nr42gh6BNd6k
    UpKu4B3lKipVfk6a

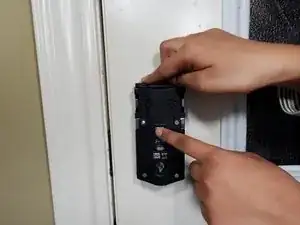

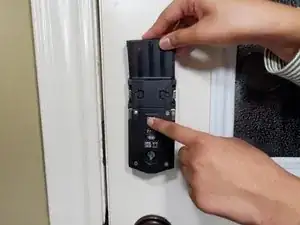

    • Re-insert the battery pack while holding down the programming button.

    • Ensure the battery pack is fully inserted by pushing it down.

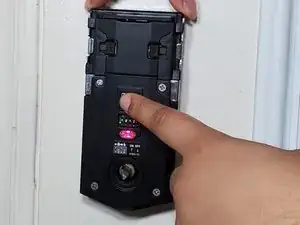

  5. TYmnFqKdIxsnXPdC
    TYmnFqKdIxsnXPdC
    sA1IL3ghZOWIkCiS
    2VT62B54lEWuh53U

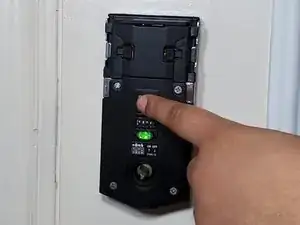

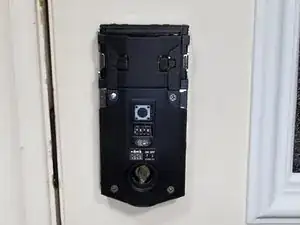

    • Release the programming button after the indicator light turns red then green.

    • Repeat steps 3 through 5 if the light does not turn green.

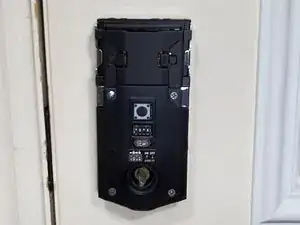

  6. TZMg1jrXh2XUCT2l
    TZMg1jrXh2XUCT2l
    OAdMNTitXNkPTNub

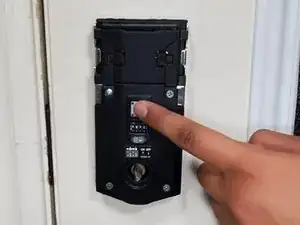

    • Press the program button again to allow the Smartlock to re-calibrate and reprogram itself.

    • The lock will lock and unlock a few times to calibrate and will remain in the lock position when the calibration is complete.

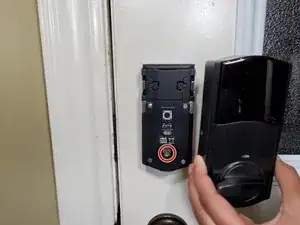

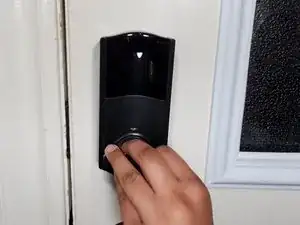

  7. 3V3fwcyeS4hoqZyJ
    3V3fwcyeS4hoqZyJ
    xHaqEGGf1F12DTQa
    6peifSDSwZjGlBX2

    • To reassemble your lock, reseat the faceplate on the lock.

    • Twist the lock switch until it aligns with the bolt mechanism and the faceplate sits flush against the lock.

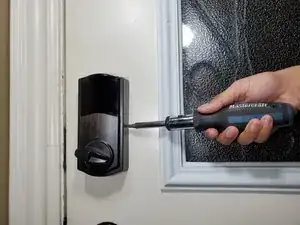

    • Use the Phillips #1 screwdriver to secure the two 8 mm screws back into place to conclude the fix.

Conclusion

Your lock will not jam anymore!
