Introduction

Candy machines occasionally get stuck. This guide will help you when shaking it doesn’t work. A quarter can get stuck really anywhere in the machine but this guide will show you how to free the mechanism to easily remove the quarter.

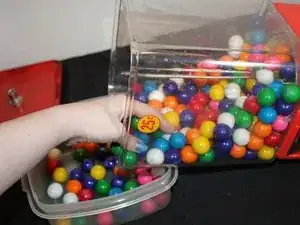

  1. lx4E4eMWoudDTxbH
    lx4E4eMWoudDTxbH
    ebJuLRPTfvMMuqp4
    cI4foAHSPUX2hIaA

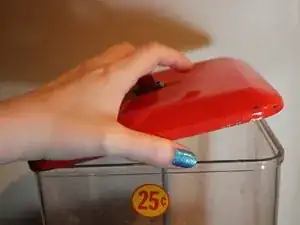

    • Remove the lid of the machine.

    • Remove candy from container and place aside in a bowl.

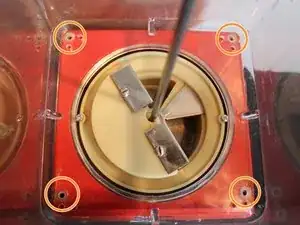

  2. JHRosUywaytXBDe5
    JHRosUywaytXBDe5
    NVXH6kiaZMWMZS3l
    CtnWAIGM2VVNOKRo

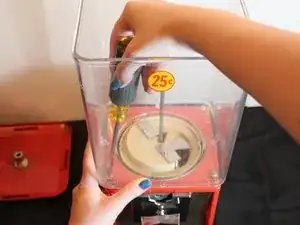

    • Using a flathead screwdriver unscrew the four 10mm corner screws.

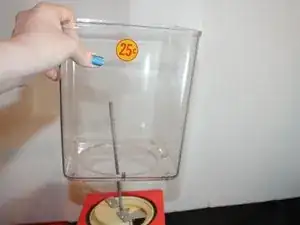

    • Remove the plastic container and set it aside.

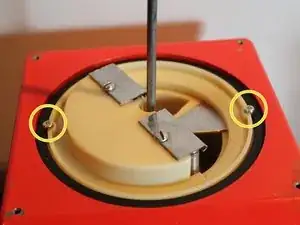

  3. EqAIHHWgPie5IwNU
    EqAIHHWgPie5IwNU
    bgOLsGjeKwlE6oTW
    • Using a Phillips #1 screwdriver remove the two 15mm screws that are marked in the photo.

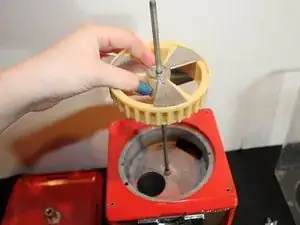

  4. Xpfaw4rjVpNZ5DFc
    Xpfaw4rjVpNZ5DFc
    ks3kfvWuAlHtgVmU
    • Remove the inner mechanisms by sliding them up and off the metal rod.

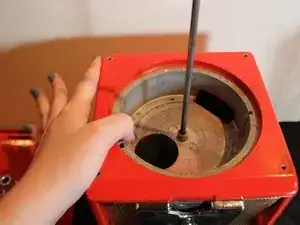

  5. CcnWquJNSRTU4wSX
    CcnWquJNSRTU4wSX
    jAvjBewgclSlW5DX
    • Remove the metal top with both hands on the sides.

    • Lift up, sliding it up and off the metal rod.

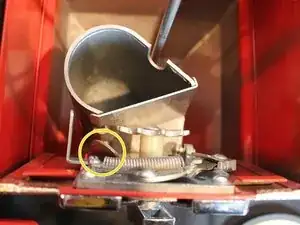

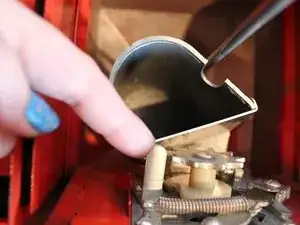

  6. LdIPQNNkCHZUFpVH
    LdIPQNNkCHZUFpVH
    TsLg2sXUDfHYKw3k
    uXMlfTN4ouOuxLrY

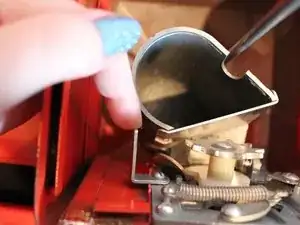

    • Now you can see into the inner mechanisms.

    • Locate the stuck quarter and try to remove it.

    • For better access, lift up the left hinge to release the entire mechanism.

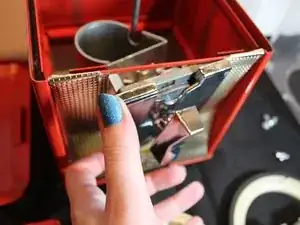

  7. w41ebduglHNYcQR4
    w41ebduglHNYcQR4
    KubgVxFFqq54AkJj

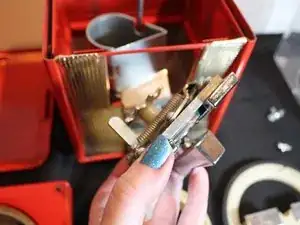

    • Remove the inner mechanism by pulling out one side before sliding out the whole mechanism.

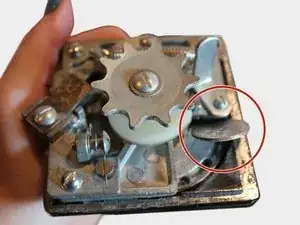

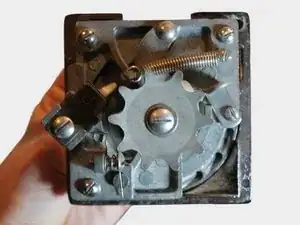

  8. VAMyHmBR31MSVHAI
    VAMyHmBR31MSVHAI
    45aBEZZyZWWIgiTx
    • Find the stuck quarter in the mechanism.

    • Remove the quarter with your hands by simply pulling (use a plier if needed).

  9. 5VsKZA5AKwXeaICA
    5VsKZA5AKwXeaICA
    SQEQgLI6PsZkAjGT

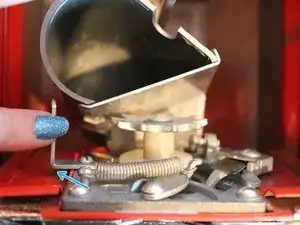

    • Slide the mechanism back in, right side in first followed by left.

    • Lock the mechanism in place by sliding the hinge lock back down.

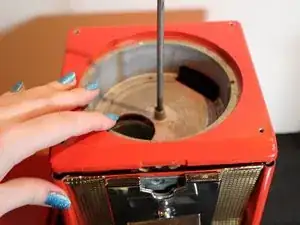

  10. oTBSC3qBY1RXBgKb
    oTBSC3qBY1RXBgKb
    bXlCjUEkW4MIXF2k

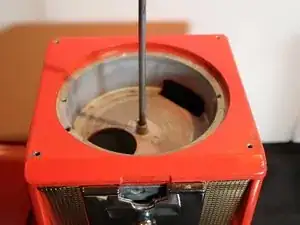

    • Return the metal top by sliding it back down the metal rod.

    • To secure the metal top back into place pull it forward so it covers the front of the machine.

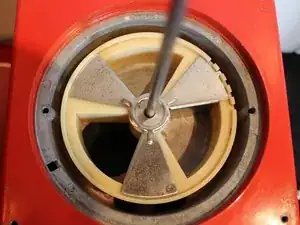

  11. qjkl4UoM4xmSUqIk
    qjkl4UoM4xmSUqIk
    B5Imkr4CedYC2TTN
    bQNoscMZOC1aCgfs

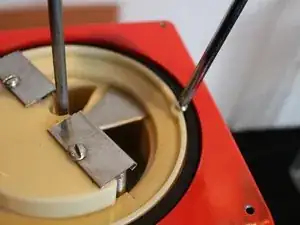

    • Slide the rotation mechanism back down so it sits with one of the three holes is fully over the hole.

    • Slide down the cover mechanism so it aligns with the screw holes.

    • Use a phillips head screwdriver to screw down the two side screws.

  12. Br1yMx1UJU4XLxii
    Br1yMx1UJU4XLxii
    TXAp6GNul2Ri1W5X
    • Replace the plastic container so it aligns with the four screw holes.

    • Replace the four screws using a flat head screwdriver.

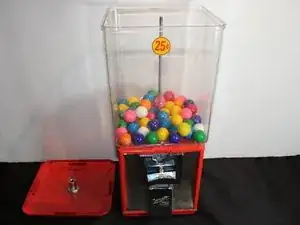

  13. qBidvNgT5wSfcdCO
    qBidvNgT5wSfcdCO
    DV2JYUAZ5fc6YJnj
    • Replace the candy and the lid.

    • Enjoy your sweet tooth adventures.

Conclusion

I hope this guide helps you understand how to fix and change your candy machine, enjoy your candy!
