Introduction
Use this guide to fix your faulty controller trigger on your Thrustmaster Eswap X Pro Controller. If your controller is experiencing faulty readings such as continued button readings after the button is released, it is most likely due to a layer of dust covering the switch. The switch refers to the limit switch that is pushed down every time the trigger button is pressed. A layer of dust causes a false reading of being pressed and therefore the switch continues firing.
Before using this guide, check with the controller software, ThrustmapperX, to see if your controller is producing false readings. Be absolutely sure the problem is with the trigger switch and not the mechanism itself.
-
-
Flip the controller so the backside is facing up.
-
Flip both of the switches away from the center.
-
-
-
Flip the controller over so the top is facing up.
-

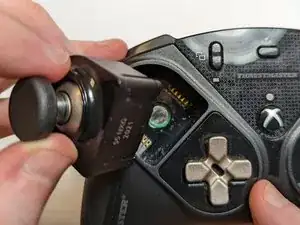

Pull out both the joystick and the directional pad modules.
-
-
-
Flip the controller over again so the backside is facing up.
-
Use a spudger to remove five rubber screw covers.
-
-
-

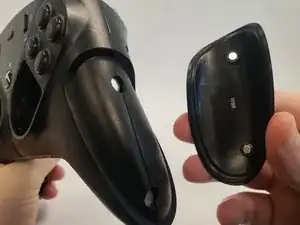

Lift the back cover slightly from where you removed the trigger button.
-
Use a Q-tip dipped with isopropyl alcohol to clean the surrounding area.
-
Additionally, wipe down the top face of the trigger with a Q-tip.
-
-
-
Reattach the trigger button onto the controller.
-
Use a Phillips #1 screwdriver to tighten the screw securing trigger button.
-
To reassemble your device, follow these instructions in reverse order.
