Introduction

You might notice the importance of having a car camera while on the roads, even if you are a cautious driver, accidents could still happen due to third party causes. You can place a car camera at the front of your car and record valuable evidential footages in case there is a need for it. Follow this guide to install your car camera and save yourself money and time. Installation will take about 15 minutes, and requires no tools.

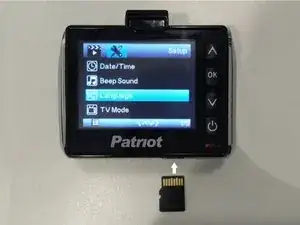

  1. VfGIHvMtp2T6af3I
    • Connect up the car camera to your PC via a USB cable.

    • Browse through the settings menu and key in any required information. E.g Time & Date Stamp, Voice Recording(On/Off)

    • Insert a Class 10 SD Card and format the SD Card using the device's setting menu.

    • Try recording a video at your computer desk and test the playback function

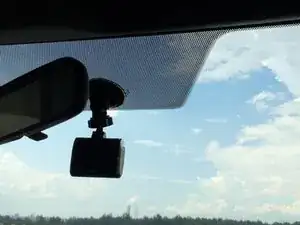

  2. sWlifeGUmTOOK1Lj
    • Plunge the camera with the suction cup to your preferred point.

    • Tip: Wet the windscreen with some clean water before plunging in the suction cup for a stronger hold.

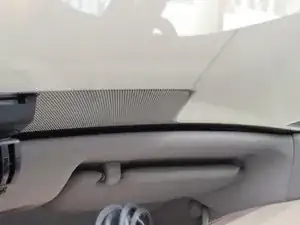

  3. VSSDn6UDffXlIGrH
    • Start tucking the USB Cable into the gap above the passenger seat.

    • Align the cable between the gap and secure the cable in place by pushing in the wires using your four fingers.

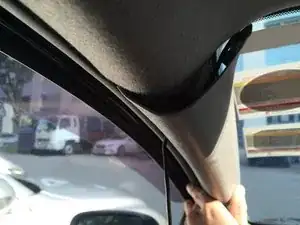

  4. vOWD4jMqRBbAC6FN
    • The side door trunking can be easily detached by giving it a firm nudge.

    • Hide the cable beneath the trunking leaving the free end nearer to the passenger seat as depicted in the picture.

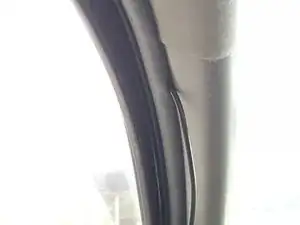

  5. jmoXuOSAiksli5do
    • Push the cable into the rubber sleeve using your thumb

    • Keep your thumb in the sleeve and run the cable downwards until you reach the glove compartment area.

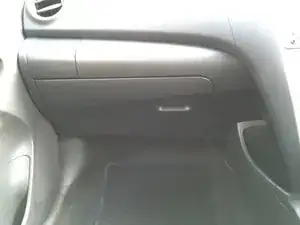

  6. GcNnRXC2wlOnvaHY
    • Use some duct tape to hold the cables in place if there are no crevices underneath your glove compartment.

    • Hang on there, you're almost done.

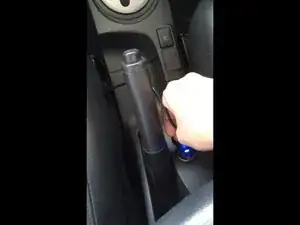

  7. esSn4XL3AnuBWqAD
    • Plug in the USB convertor into the Cigar Jack Port.

    • Connect up the USB cable of the car camera into the port.

    • Start your engine if you haven't done so, car camera should switch on automatically upon detecting power from the car.

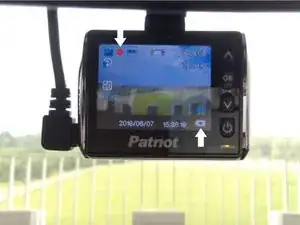

  8. 4cWWUCydwWxZ5CTd
    • Ensure the camera is powered correctly, look for a charging indicator icon on your car camera device.

    • Make sure there is a red rounded icon that indicates "Record in Progress" before you drive off everyday.

    • You are done, enjoy the reassuring driving experience and be safe.

Conclusion

To reassemble your device, follow these instructions in reverse order.
