How to Install an M.2 SSD

Written By: Chayton Ritter
  • Comments: 0
How to Install an M.2 SSD

Difficulty

Easy

Steps

4

Time Required

2 - 5 minutes

Introduction

Follow this general guide to learn how to install an M.2 SSD in your laptop.

Before you work on your laptop, be sure to completely power off and unplug it. Make sure the laptop is not in standby, sleep, or hibernation mode.

  1. YV35eDveRYTlYYZH
    YV35eDveRYTlYYZH
    q52Oc6yfmeLG3cRl

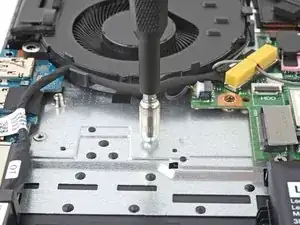

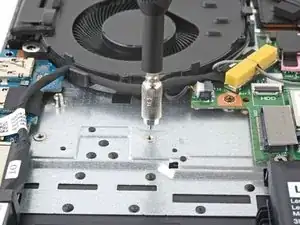

    • If your laptop did not include a removable standoff or only supports one M.2 SSD form factor, you can skip this step.

    • Use a screwdriver to remove the preinstalled standoff.

    • If your laptop does not include a preinstalled standoff, you will need to get one.

    • Find the correct standoff location that corresponds to your desired M.2 SSD form factor.

    • Screw in the standoff.

  2. RLbRYSolXco2Y2qp
    RLbRYSolXco2Y2qp
    MS3IEpmIQ2giQBK4
    GjZKVcaTf4GAaj2I

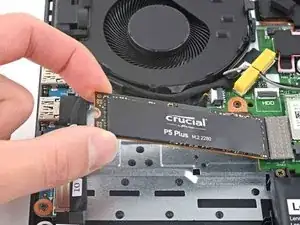

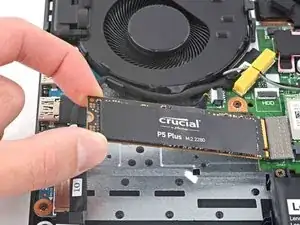

    • Grip the SSD on the sides near the screw indent.

    • Gently slide the SSD into the socket at about a 30˚ angle.

    • The socket is spring loaded and will support the SSD at an angle.

  3. qMs3pM3ui1RYfLCW
    qMs3pM3ui1RYfLCW
    3YvBQTNcaqlXBqNf
    YU4DroW3dZ3amlkI

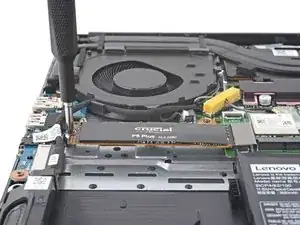

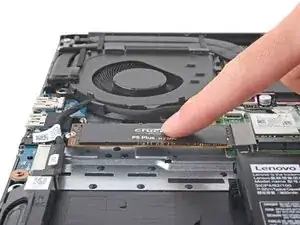

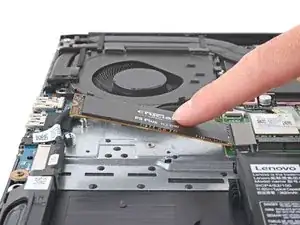

    • Use your finger to hold the SSD down horizontally, making sure that the screw indent aligns with the standoff.

    • Screw down the SSD to secure it.

  4. n3YLsLleEYOBCeoS
    n3YLsLleEYOBCeoS
    xFYEm1DmYV4GvsQM
    NPVXahkrMD4E2IfB

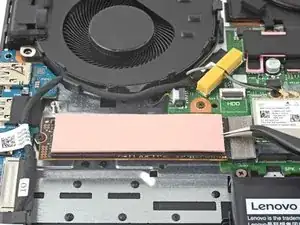

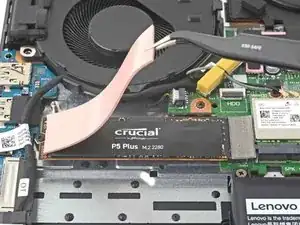

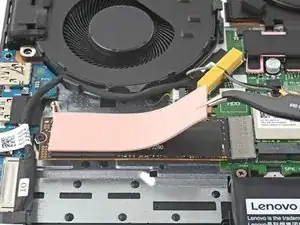

    • If your laptop did not have a thermal pad installed, you can skip this step.

    • Use tweezers or your fingers to place a thermal pad on the top of the SSD.

    • The original thermal pad can be reused if it is clean and undamaged.

Conclusion

Installation didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
