Introduction

After vaping on the cotton and coils currently in use, they will start to get a burnt taste. This is when the cotton and coils need to be replaced (rebuilt). If this is not done every other week or so, you will not get as much out of your vape and could ultimately end up burning the back of your throat. The guide will teach you how to rebuild the cotton and coils so this can be avoided.

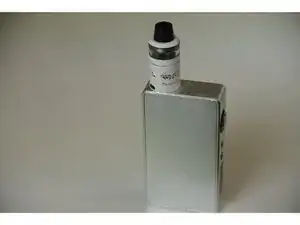

  1. XCDWQ5ErfEFKy5o1
    • WARNING: Failure to completely turn off the system can result in harm to the user or the product.

    • Turn Vape off by pressing the largest button 5 times in row quickly.

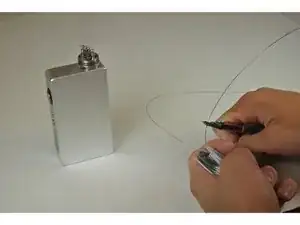

  2. kYNm1HYHHQoYqYZy
    • Cut two, 8 inch pieces of 24 gauge kanthal wire with the wire cutters.

    • Note: Approximate the 8 inches; longer is better because you can always trim the wires after the coils are built.

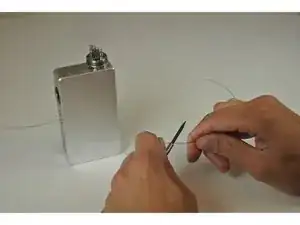

  3. aEqaHxgXtHYgY1Qk
    • Hold the screwdriver and the wire end in one hand (non dominant) and the loose end of the wire in the other hand (dominant).

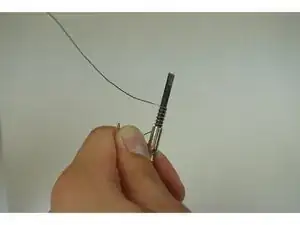

  4. qteUcxQgmPNw5OYF
    • Using the loose end of the wire, wrap 4-8 times (depending on desired ohms) around the screwdriver.

    • Note: More loops is more ohms of resistance, experiment until you find the proper amount of loops for you.

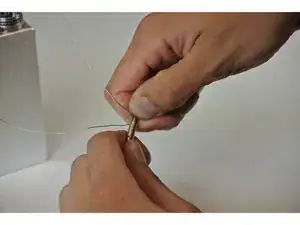

  5. Cl6HTfmfPCNCVVoB
    • Leave wire wrapped around screwdriver and use fingernails to push the coil down towards base of screwdriver.

  6. yGPgwQsrKVKcUkSu

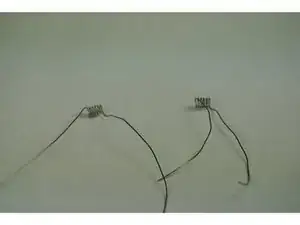

    • Carefully slide the coil off of the screwdriver.

    • Note: Try not to warp the coil.

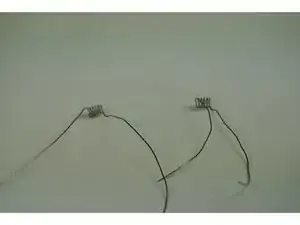

  7. rWJjArahK5dPHZIi
    rWJjArahK5dPHZIi
    gFSQ3PyQ6AMdVAJJ
    AoqUEruuEwOfJTVv
    • Repeat steps 3-6 with the other piece of wire, making sure to have the same amount of loops in both coils.

    • CAUTION: If the coils do not have the same amount of loops, the system may short.

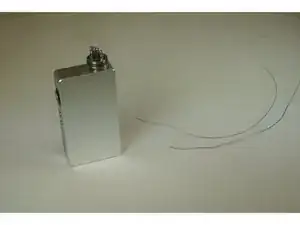

  8. I5eTEuWdP2vtghl4
    • Remove the cap to your atomizer.

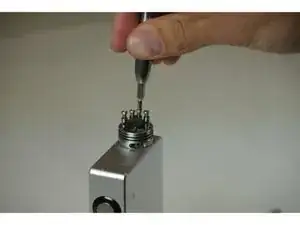

  9. EI6RKRCbghSDlOZZ
    • Unscrew the top four screws on atomizer without removing them.

    • Note: You should be able to see through the hole drilled horizontally into the screws.

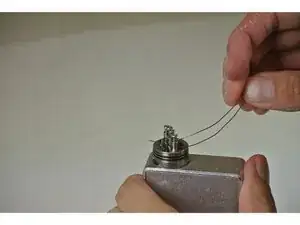

  10. 6XHCD5nhIodj3eEG
    6XHCD5nhIodj3eEG

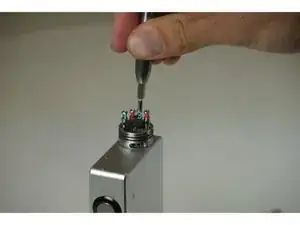

    CAxs31nMCmL1KSN2
    • Put one end of the coil in an outermost hole on side of screw and other end in one of the inner holes.

    • CAUTION: Alternate holes when placing wire inside of screws to avoid shorting the product. EX: holes 1 & 3 and holes 2 & 4 on the above picture

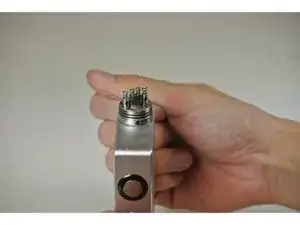

  11. tdy3oAsmUUHUEEEO
    tdy3oAsmUUHUEEEO

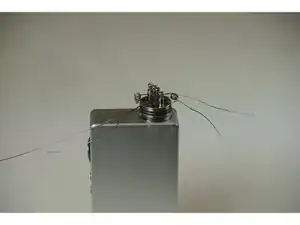

    LBEYbG2xOo4raWck
    • Repeat step 10 on other side with other coil.

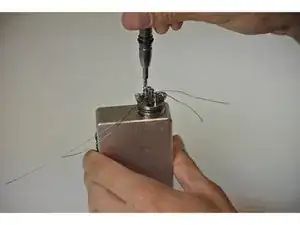

  12. wFJDMCBBS4NjBYPT
    • Tighten the screws completely once coils are in desired position.

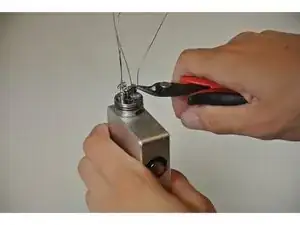

  13. Rc6m6dFCRAN2eSod
    Rc6m6dFCRAN2eSod
    aO6e6hIcZJxogaLq

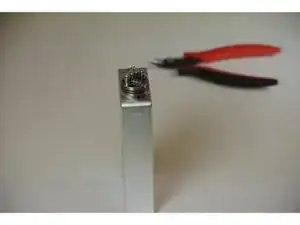

    • Cut wires as close to the posts as possible.

    • CAUTION: Cutting the wires may send the end pieces flying, be careful when cutting.

  14. 1oLWMhaIMUsMOYyw
    • Put the screwdriver through the coil to place the coil in desired position.

    • Note: A desired position would be almost parallel to the screws, and perfectly level; just get close.

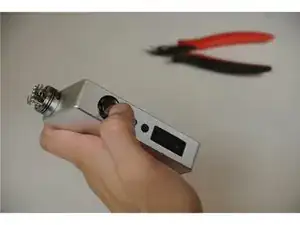

  15. wQNTmbtiAjRtyqS2
    • Re-insert the batteries and press the large button 5 times quickly to turn the vape on.

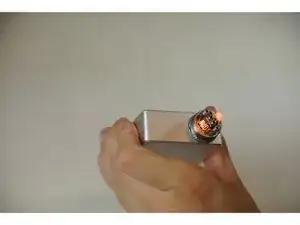

  16. 1MksXXXEYQyYZ4UX
    • Press the biggest button on vape to heat up coils until red hot.

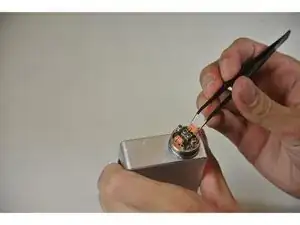

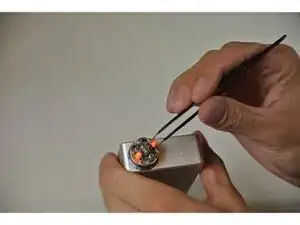

  17. urtbZd4BcsCNwrO3
    urtbZd4BcsCNwrO3
    FmcXtpLabLAbQyXW
    • Use tweezers to compress the coils, being careful not to touch the tweezers to the coils while the button is being pressed.

    • CAUTION: If the tweezers are placed on the coils while the button is being pressed, the user may sustain small burns.

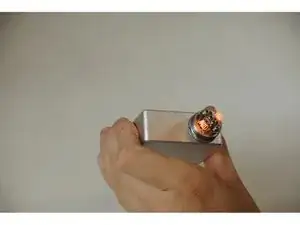

  18. o6xDQUWcKDpTVv4J
    • Repeat on other side. Coils are ready when both sides glow red hot at the same time.

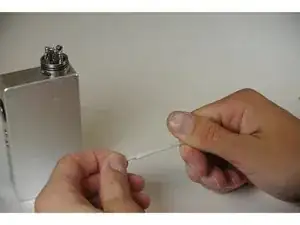

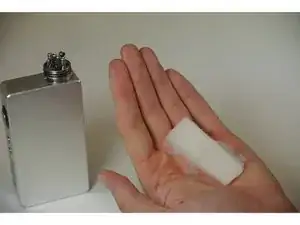

  19. Zc1OBsbmurQnxh5Z
    Zc1OBsbmurQnxh5Z
    QuAFslRWq24mFPpd
    • Once coils are cooled, tear a cotton strip from the large square and roll it with your hands until you have a tight but long strand.

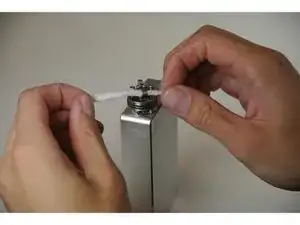

  20. 6UpOC6M65kw2kooG
    • Take cotton strand and thread through one coil.

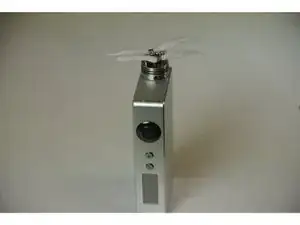

  21. HDERIIf5V4t4tAK3
    • Repeat steps 19 & 20 for other coil.

  22. LSpUwjJ5hkCXSXc1
    • Using the wire cutters, cut cotton approximately ¼ of an inch away from outside of atomizer on each strand.

  23. LVBERGleRd4TlCmt

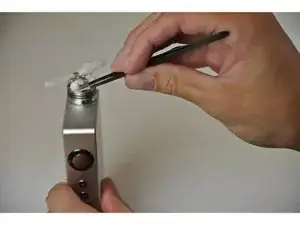

    • Tuck cotton underneath coils and into the well of the atomizer using the tweezers.

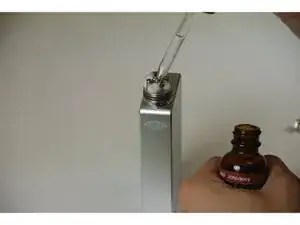

  24. UW6nLCDR52gX2aNL
    • Juice the cotton and coils completely with your favorite vape juice.

  25. QORKXhMWxbK6WaWc
    • Replace atomizer top and enjoy!

Conclusion

With vapes becoming very popular, this tutorial is very beneficial to those using them. By using this guide, it will save you a drive to your local vape store as well as five to ten dollars every week by building it yourself. As this is practiced more and more, the steps will become easier and more natural. We hope you find this tutorial as helpful to you as it has to us. In the event that the coils do not light up, or no vapor is produced, make sure the wires are properly connected to the screws and that the batteries are charged.
