Introduction

Welcome to this guide! Here is some basic background information required to begin the fix:

Background experience:

While this guide may look intimidating, no background experience is required! All steps here are made to be novice-friendly.

Hazards:
If you are inexperienced with electricity, rubber/leather gloves are recommended as they act as insulators.

Why is this repair needed?:

This repair is needed as it can be a good skill to know for the future. This fix can apply to anything requiring a fix of a wire.

If all these requirements are met, you can begin the guide!

  1. cHsSymGggV4hEfWX
    cHsSymGggV4hEfWX
    MEHfweRvQjirta1Z

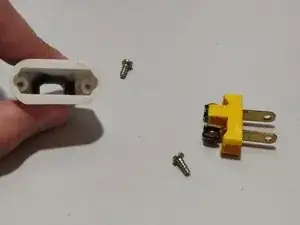

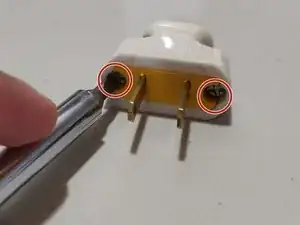

    • Use a flathead screwdriver to remove the two 3 mm screws from the power adapter.

  2. wHkxZTyy5UsskSNa

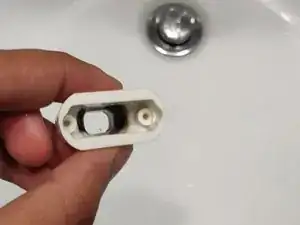

    • If needed, clean the power adapter's shell as much as possible.

  3. uuhUqjYNWwTlQgeK

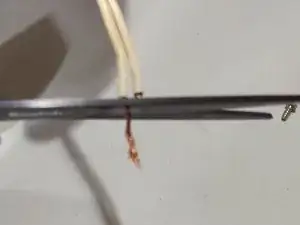

    • Use wire cutters to cut the wires to equal lengths.

  4. vCCPlUoxBjbLM5Ah

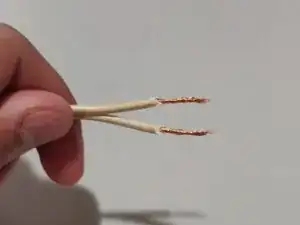

    • Use wire strippers to carefully peel the wire cord to expose 2 cm of wire.

  5. F3AGVPifdamaIcaT

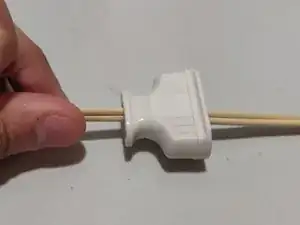

    • Slide the shell back into the wire cord, past the exposed copper wires.

  6. MaLQBCghaONrHGJS
    MaLQBCghaONrHGJS
    YYVlZLfB1msKMYFc
    jRWpOCqJEEasQZ4T

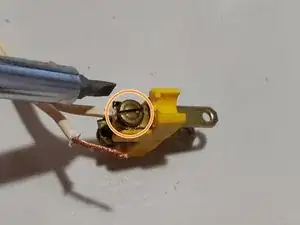

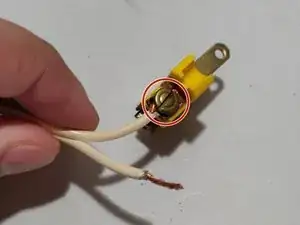

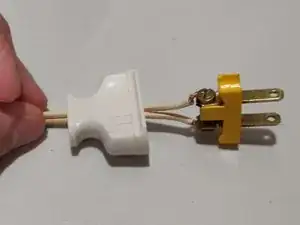

    • Grab the terminal of the power adapter and loosen the 3 mm screws of the terminal if needed.

    • Wrap one exposed copper wire around one loosened 3 mm screw and tighten the screw immediately.

    • Repeat the second bullet point for the second copper wire.

  7. mTgLj6AuMcbXlLMo
    mTgLj6AuMcbXlLMo
    pYBSRXVwtg6guDVF

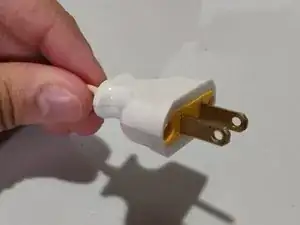

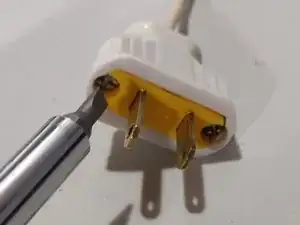

    • Push the shell back into the terminal so that the terminal is protected by the shell.

    • Grab the 3 mm screws that were taken out in the first step and re-screw them into the shell.

  8. GDZCQpSqVeoiTEJW
    GDZCQpSqVeoiTEJW
    J2SkSRUS2JRnr3wx

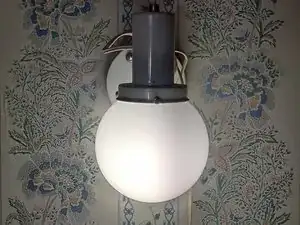

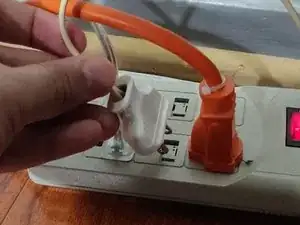

    • Plug in the power adapter into a functioning power outlet.

    • The light globe should now successfully turn on!
