How to Repair a Crack on a Vittorazi Moster Exhaust

Written By: Darrell Gonzalez
  • Comments: 0
How to Repair a Crack on a Vittorazi Moster Exhaust

Difficulty

Moderate

Steps

11

Time Required

25 minutes

Introduction

This step-by-step guide will show you how to repair a crack on a Vittorazi Moster 185 Plus MY19 paramotor. The process consists of lossening 5 nuts to remove the cracked exhaust and weld it. In order to be able to remove the nuts, use a 10mm wrench or a 10mm socket with the rachet. As this task could be physically challenging, be sure to know the risk that comes with this project to keep yourself safe from injury.

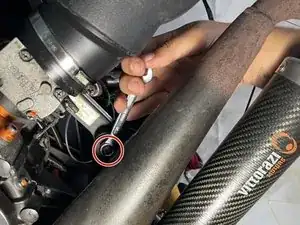

  1. LRrNGesUIVk1xcBd
    LRrNGesUIVk1xcBd
    RhZsOSPFweDBdftI

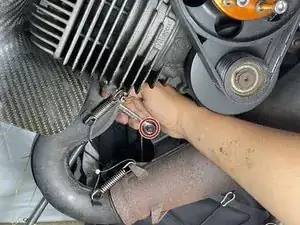

    uDcXosOjN2a23q3m

    • Use a 10mm open wrench to lossen the three exhaust mounting points.

    • Locate the nuts that need to be adjusted and make sure you you have the proper tools, stated earlier to ensure they can loosen.

    • Once you have found the nuts, use your 10mm wrench to carefully unscrew and loosen the nuts.

    • This may take some extra force to loosen the nuts, and if this is case, keep in mind all safety precautions.

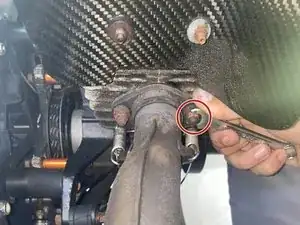

  5. hf2ILS5qpUsRobHk
    hf2ILS5qpUsRobHk
    CZMeYFpjg3YSeT6p

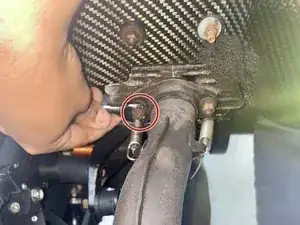

    • Remove with the 10mm wrench the two nuts in the exhaust base.

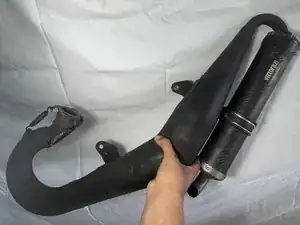

  6. LtmHJZ5WdBlM1PF5

    • Remove the loosen mounts and take out the exhaust with it's base.

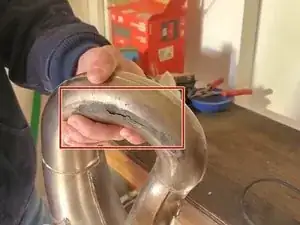

  7. jEdxZrNrAvPUfbkC

    • Clean the cracked area with alcohol and a rug.

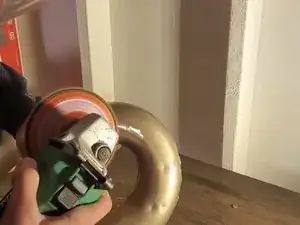

  8. UuKDwMupCx4CGPlx
    UuKDwMupCx4CGPlx

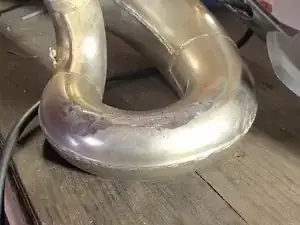

    M3ZFRaRvlixGHQBJ

    • Grind the cracked area with the grinder.

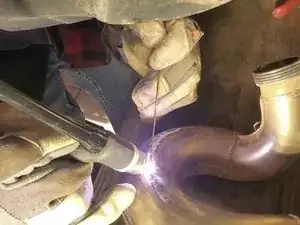

  9. DBm3KwQtbnKFf1NE
    DBm3KwQtbnKFf1NE

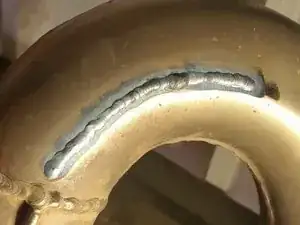

    UxHvvdLxw3ovH3Pa

    • Weld the cracked area with the welder.

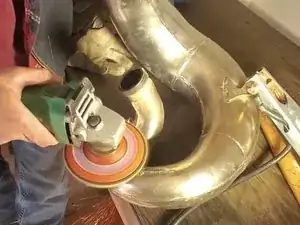

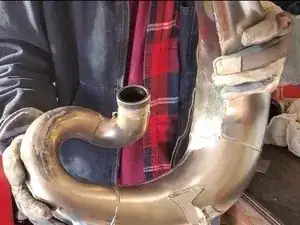

  10. APAErKXRDxOans1s
    APAErKXRDxOans1s
    6jIYwiYRB4EjTGvA

    • Grind the welded area with the grinder to smooth the area.

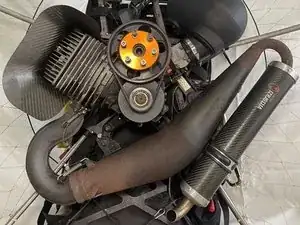

  11. hHBOjIiXi6EnQRkY

    • Reinstall the exhaust to the motor by repeating 1-3 steps in reverse order.
